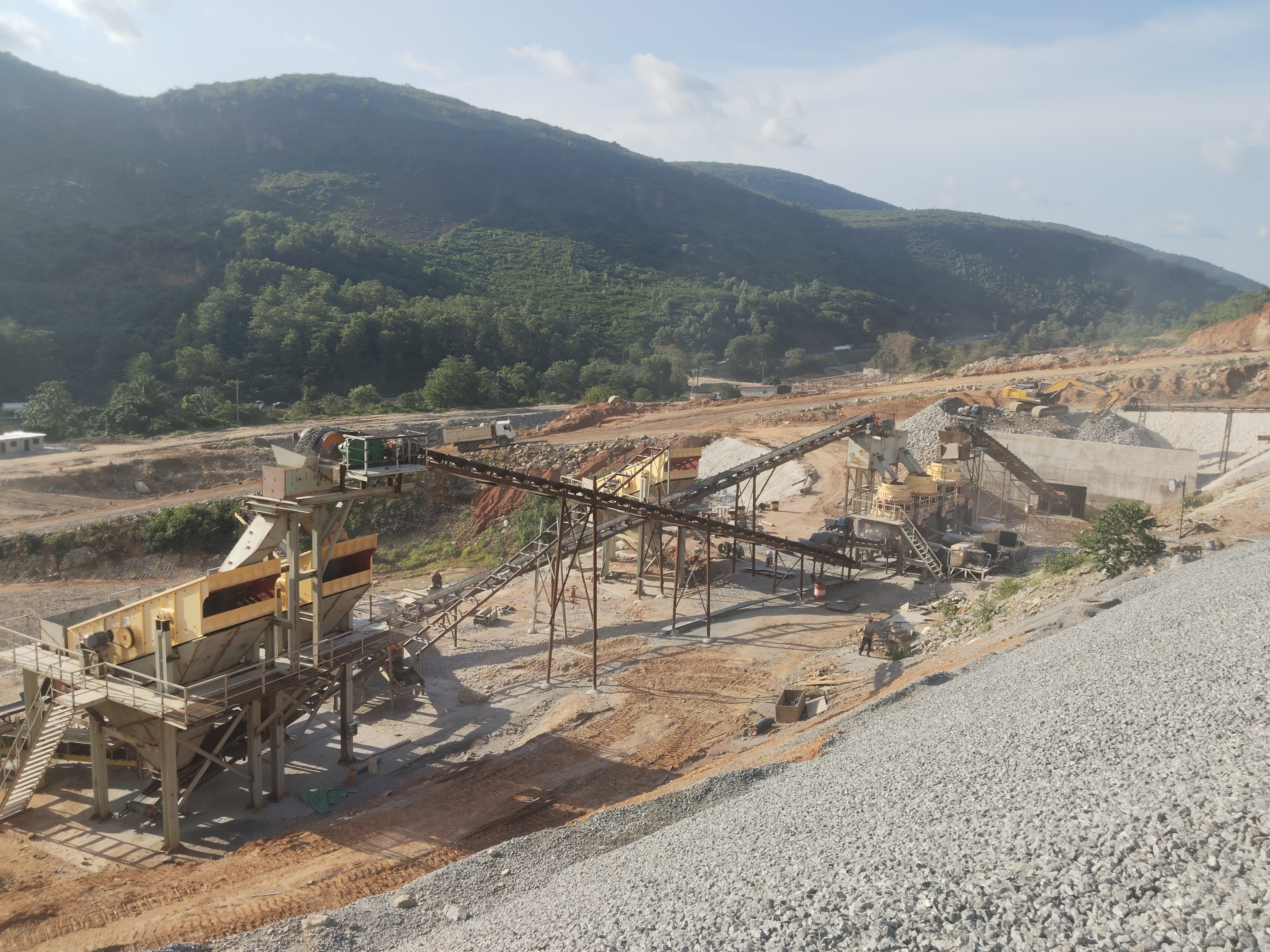

Upgrading a Granite Aggregate Line in Guinea

In a granite aggregate project in Guinea, the client was facing a common problem in older quarry plants: the primary crushing section relied on several small jaw crushers working at the same time. The setup could run, but it was not efficient enough for long-term aggregate production.

The main issues were limited capacity, frequent equipment failures, higher energy use per ton and unstable production. To improve the plant’s overall performance, Leimeng provided an upgraded crushing and screening configuration covering primary crushing, secondary crushing and final screening.

The final solution was straightforward: replace the complicated multi-machine primary crushing setup with one PE900×1200 jaw crusher, use one LMC1650 and two LMC1400 compound cone crushers for hard rock secondary crushing, and install three 2YKJ2570 double-deck vibrating screens for final aggregate classification.

Why the Old Granite Crushing Plant Needed an Upgrade

In many older aggregate plants, adding more small machines may look like a simple way to increase output. However, when several small jaw crushers work in parallel, the system often becomes harder to control. Feeding may not be even, maintenance points increase, and one machine failure can quickly affect the whole production rhythm.

For a hard rock material like granite, this problem becomes more obvious. Granite is generally regarded as a hard and abrasive rock in aggregate production, and it is often associated with a Mohs hardness range of around 6–7 depending on its mineral composition. In practice, this means the crushing system should not be selected by capacity alone. Feed size, crushing force, liner wear, CSS control, screening capacity and long working hours all need to be considered together.

That means the primary and secondary crushing equipment must be selected not only for capacity, but also for crushing force, wear resistance, feeding stability and long operating hours.

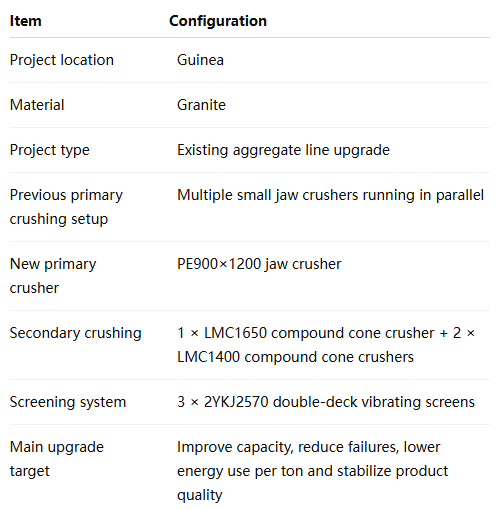

Project Snapshot

Technical Notes Behind This Upgrade

The upgrade focused on several measurable engineering factors rather than simply adding more machines. The old primary crushing section used multiple small jaw crushers, which increased the number of maintenance points and made stable feeding more difficult. By replacing this setup with one PE900×1200 jaw crusher, the primary crushing stage became simpler and easier to control.

For the secondary stage, the combination of one LMC1650 and two LMC1400 cone crushers was selected for hard rock reduction. In granite aggregate production, cone crushers are commonly used because they can provide stable compression crushing and better wear control than impact crushers in highly abrasive applications.

The screening section was also part of the system upgrade. Three 2YKJ2570 double-deck vibrating screens were configured to classify the crushed granite into required aggregate sizes and help control the circulating load. In a crushing plant, screen capacity directly affects crusher load, product grading and overall production stability.

Start with the Material in a Granite Crushing Plant

For a granite crushing plant, the first question should not be “Which crusher is the biggest?” A better question is: “What kind of material is being processed, and what does the final aggregate need to look like?”

Granite usually requires a stable primary crusher and a reliable secondary crushing stage. If the first-stage crusher cannot handle large feed material smoothly, the downstream cone crushers and screens will also be affected. If the secondary crushing stage is not balanced with screening capacity, the plant may face high circulating load, unstable output and faster wear.

That is why Leimeng designed this upgrade as a complete crushing and screening system, instead of replacing one machine only.

Primary Crushing Upgrade: PE900×1200 Jaw Crusher for Granite Crushing Plant

The original line used several small jaw crushers in the primary crushing stage. This increased the number of equipment points, made maintenance more complicated and limited the stability of the feeding process.

Leimeng replaced this setup with one PE900×1200 jaw crusher. In a hard rock aggregate plant, this kind of simplification can bring several practical benefits:

1. Fewer primary crushing machines to manage
2. More stable feeding into the next crushing stage
3. Less downtime caused by multiple old machines
4. Easier maintenance planning
5. Better control of the whole production rhythm

A jaw crusher is usually a practical choice for hard rock primary crushing because it uses compression force to reduce large stones before secondary crushing.

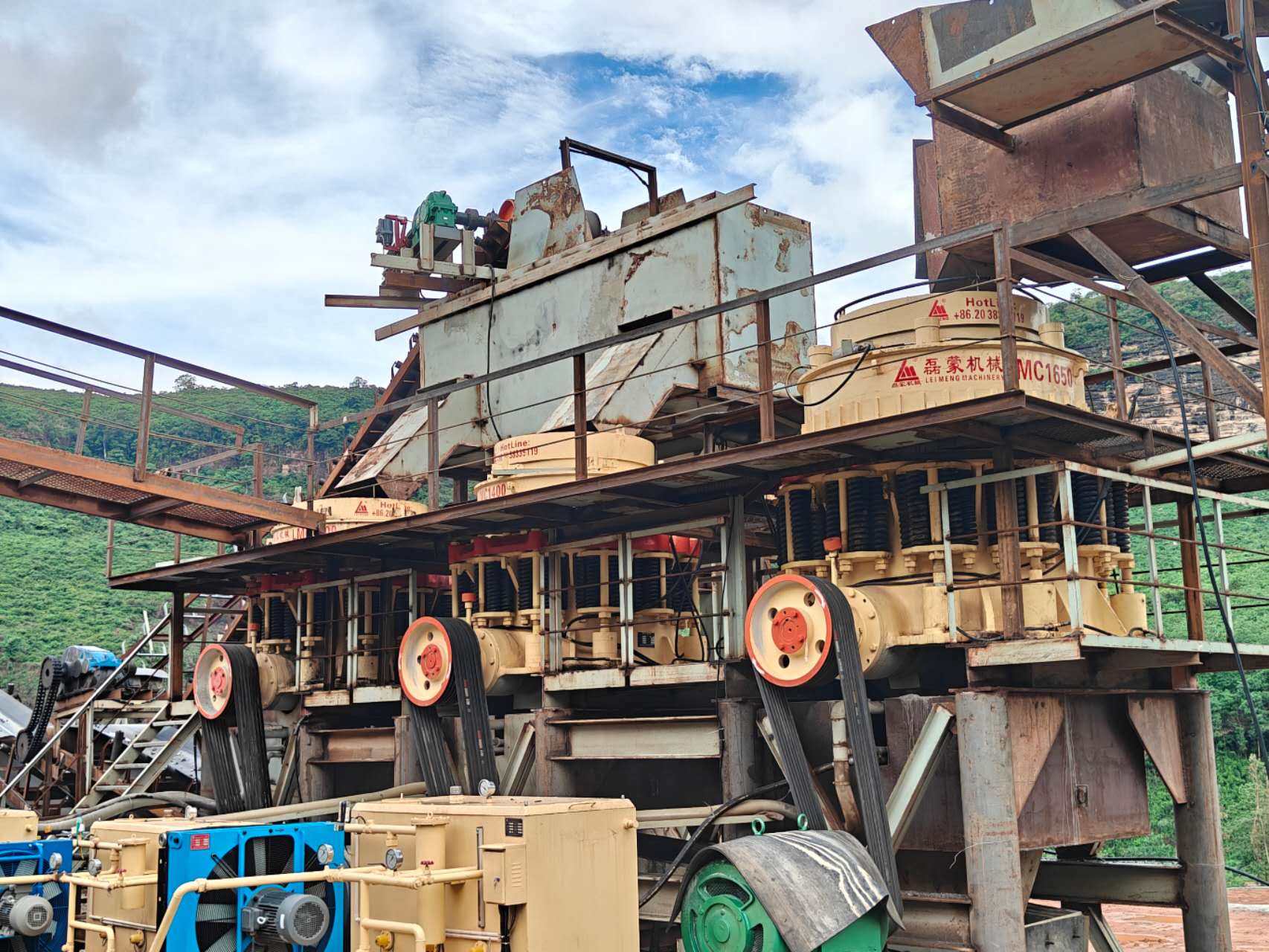

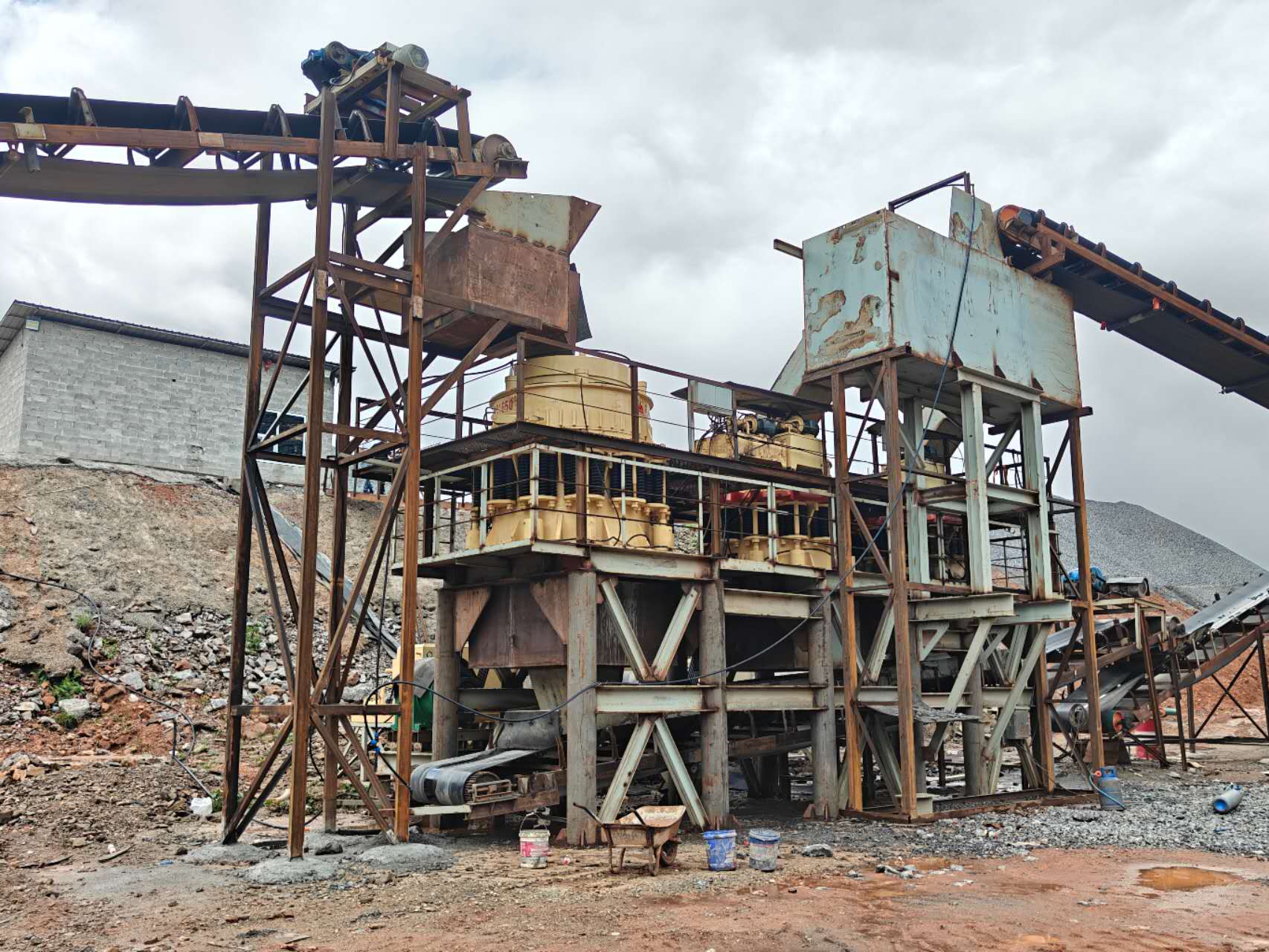

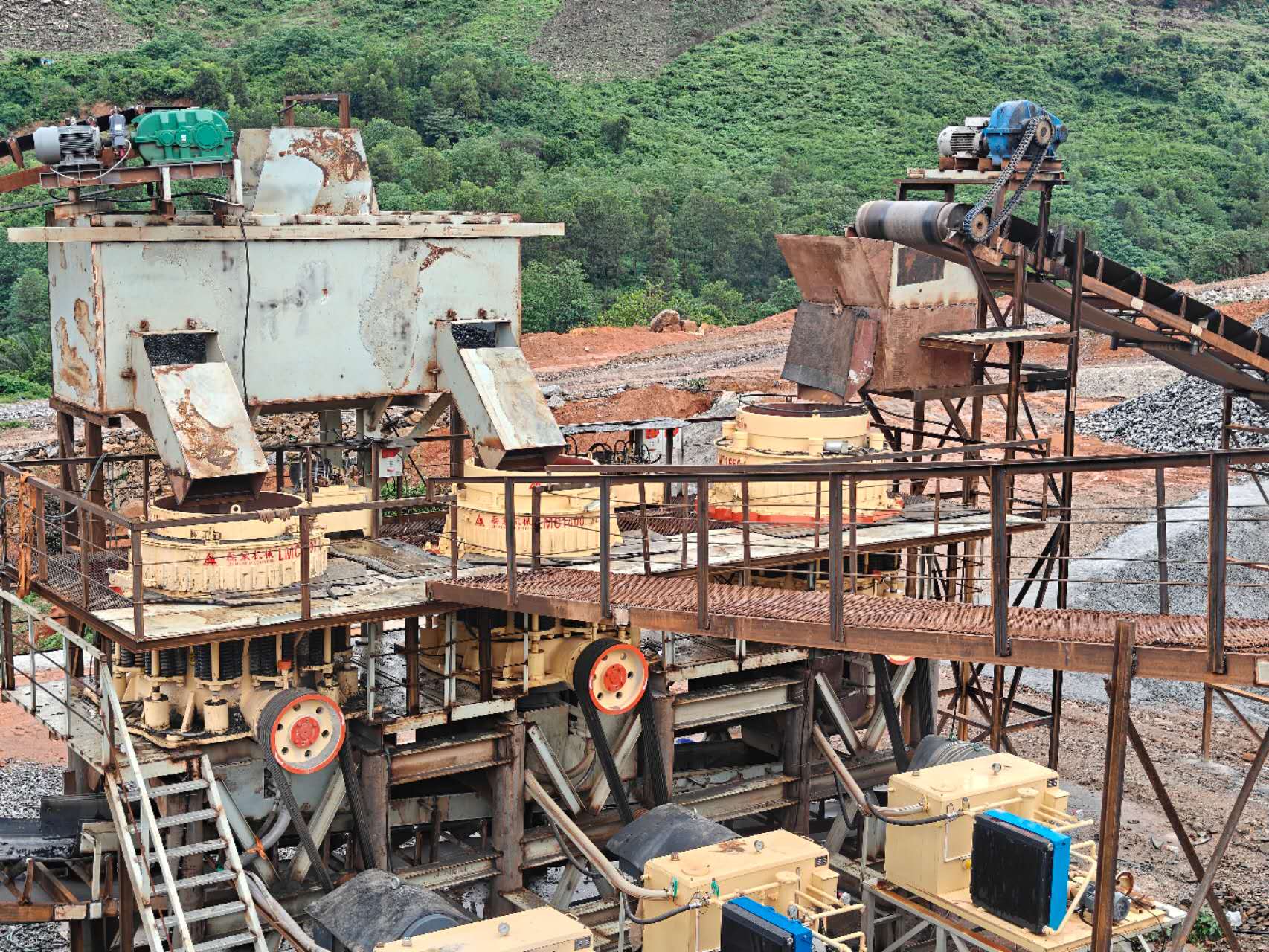

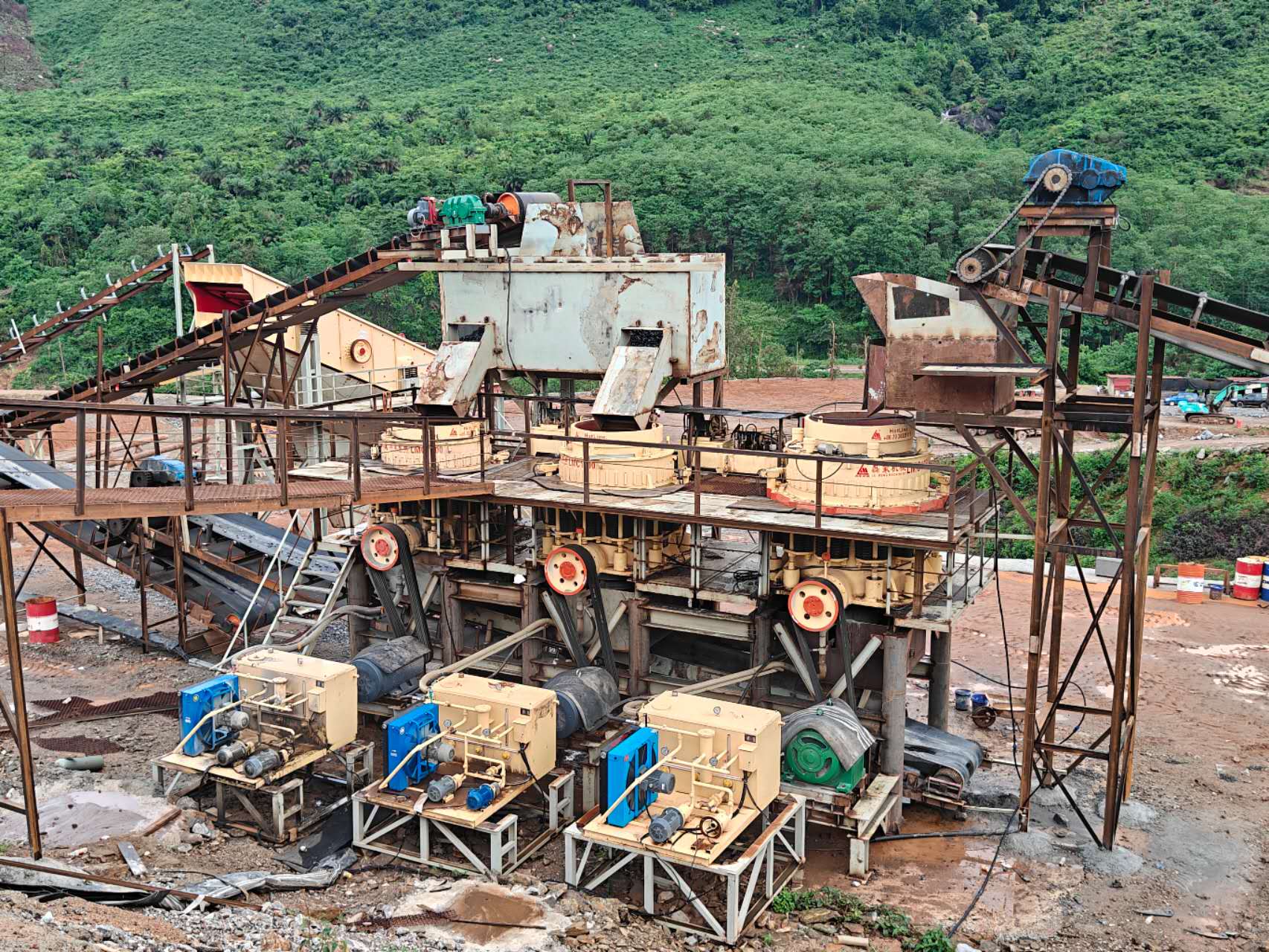

Secondary Stage Optimization: Utilizing LMC Cone Crushers for Hard Rock

After primary crushing, granite still needs further reduction before final screening. For this stage, Leimeng configured one LMC1650 compound cone crusher and two LMC1400 compound cone crushers.

Cone crushers are commonly used in hard rock aggregate plants because they are suitable for materials such as granite, basalt and river stone. Compared with impact crushing in highly abrasive rock, cone crushing is often a more stable option for long-term operation and wear cost control.

In this project, the LMC cone crusher configuration helps the plant improve:

Secondary crushing efficiency

Product size control

Crushing stability for hard granite

Wear part service life

Overall plant reliability

This is also where the system-level design matters. The cone crushers must match the output of the PE900×1200 jaw crusher and the capacity of the YKJ vibrating screens. If one part is oversized or undersized, the whole plant can lose balance.

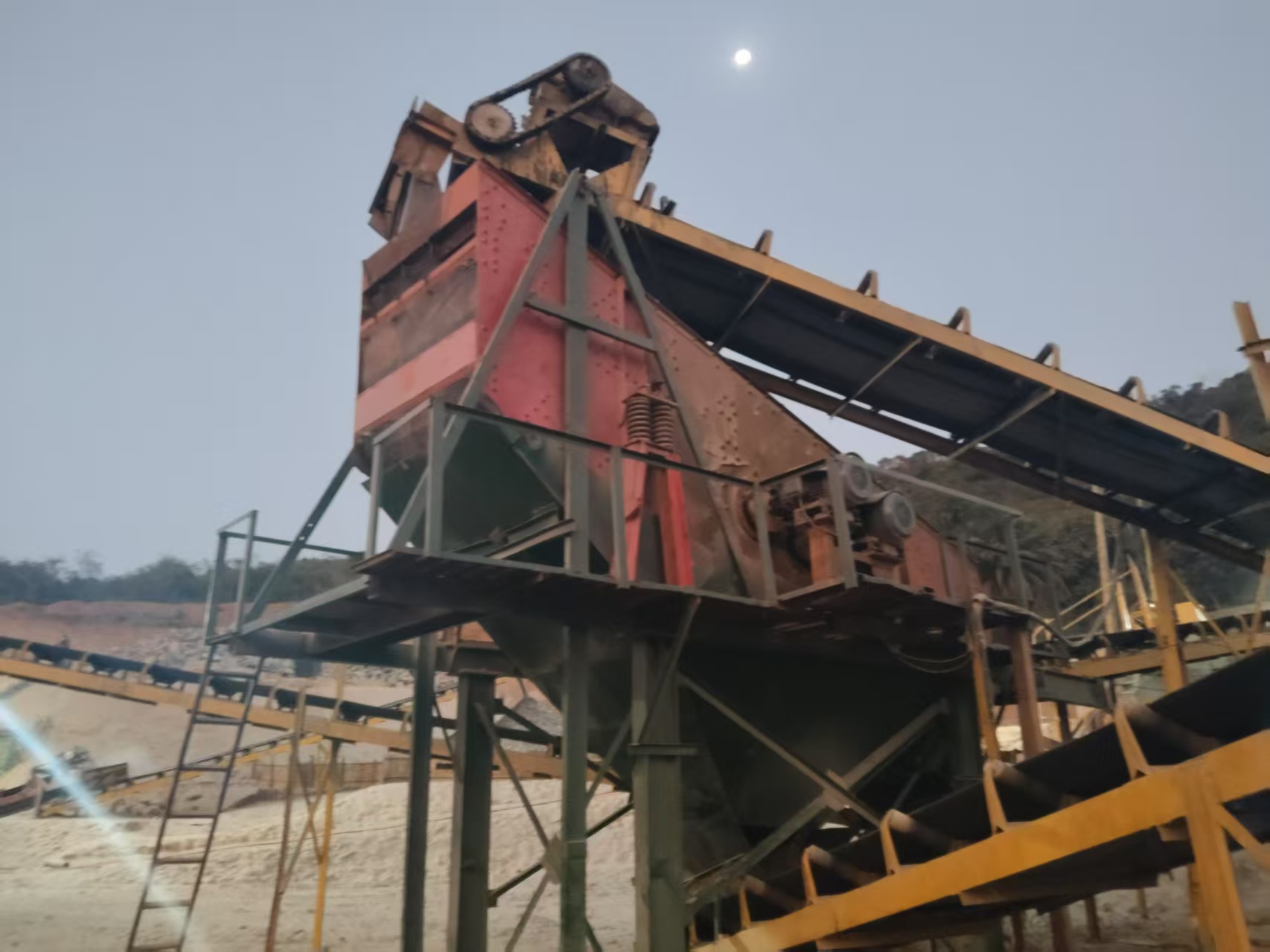

High-Efficiency Sizing: Deploying 2YKJ2570 Vibrating Screens for Particle Sizing

Screening is not just the final step after crushing. In a granite aggregate production line, vibrating screens directly affect final product size, product consistency and recirculating load.

For this Guinea project, Leimeng configured three 2YKJ2570 double-deck vibrating screens. The purpose is to classify crushed granite into required aggregate sizes and keep the final product grading more stable.

A properly matched screening system can help:

1. Reduce oversized material entering the finished product pile
2. Control return material to the cone crushers
3. Improve aggregate size consistency
4. Reduce unnecessary load in the crushing circuit
5. Support more stable plant operation

This is one of the most important lessons in aggregate plant upgrading: crushers and screens should be designed as one circuit, not as separate machines.

What Improved After the Granite Crushing Plant Upgrade?

Because the project is still focused on practical plant operation, the improvement should be understood through the system changes rather than unsupported percentage claims. The upgrade mainly improved the line in five areas:

1. Simpler Primary Crushing Structure

Replacing several small jaw crushers with one PE900×1200 jaw crusher reduced the number of primary crushing machines in operation. This makes feeding, inspection and maintenance easier to manage.

2. More Stable Feed to the Secondary Stage

A simplified primary crushing section helps provide a more consistent feed flow to the LMC cone crushers. Stable feeding is important for cone crusher performance, liner wear control and product size consistency.

3. Better Match for Hard Granite Crushing

Granite is a hard and abrasive material. The PE jaw crusher and LMC cone crushers were selected to handle hard rock reduction through compression crushing, which is more suitable for this type of material than relying on impact crushing in high-wear conditions.

4. Improved Aggregate Classification

The three 2YKJ2570 double-deck vibrating screens help separate crushed granite into required aggregate sizes. A properly matched screening system can reduce oversized material, control recirculating load and support more consistent final product grading.

5. Better Long-Term Cost Control

For a hard rock aggregate plant, operating cost is affected by more than electricity use. Wear parts, downtime, maintenance access, recirculating load and product consistency all influence the final cost per ton. This upgrade was designed to improve those factors through a more balanced crushing and screening layout.

What Other Quarry Operators Can Learn from This Granite Crushing Plant Upgrade

This Guinea granite plant upgrade shows that a modern aggregate line should not be designed by simply adding more machines. A better approach is to review the material, feed size, production target, wear conditions and screening requirements together.

For quarry owners and aggregate producers, these questions are worth asking before upgrading an old plant:

Is the primary crusher limiting the whole plant?

Is the secondary crusher suitable for the material hardness and abrasiveness?

Is the screen capacity matched with crusher output?

Is the circulating load too high?

Are wear parts being replaced too frequently?

Is the final aggregate grading stable enough for the market?

If the answer to several of these questions is “yes,” the problem may not be one machine. It may be the whole crushing and screening circuit.

Why Choose Leimeng for Granite Crushing Plant Upgrades?

Leimeng provides crushing, screening and complete aggregate production line solutions for quarry, mining and construction aggregate projects. For hard rock applications such as granite and basalt, Leimeng can help clients configure suitable equipment according to material hardness, feed size, required capacity and final aggregate specifications.

In this Guinea project, the upgrade was not only about replacing old machines. It was about building a more balanced crushing and screening system with fewer bottlenecks, more stable operation and better long-term performance.

FAQ

Q1: What is the best crusher for granite primary crushing?

A jaw crusher is commonly used for granite primary crushing because it can handle large feed sizes and hard rock materials through compression crushing.

Q2: Is cone crusher suitable for granite aggregate production?

Yes. Cone crushers are widely used for hard rock secondary crushing, especially for granite, basalt and river stone aggregate production.

Q3: Why should crushers and screens be matched together?

Because crusher output directly affects screen load, while screening capacity affects recirculating load and crusher stability. If the two are not balanced, the plant may suffer from unstable production, excessive wear and lower efficiency.

Q4: When should an old aggregate line be upgraded?

An upgrade should be considered when the plant has limited capacity, frequent downtime, high wear cost, unstable product size or equipment that no longer matches current production requirements.

Q5: Can Leimeng provide a complete crushing and screening solution?

Yes. Leimeng Group provides jaw crushers, cone crushers, impact crushers, vibrating screens, mobile crushing plants, sand-making equipment and complete aggregate production line solutions.

Technical Note

Actual plant performance may vary depending on raw material hardness, feed size, moisture content, abrasiveness, crusher CSS setting, screen opening size, feeding stability and daily operation conditions. Before confirming a crushing plant upgrade plan, Leimeng’s engineering team usually reviews the client’s material data, current equipment layout, target capacity and final aggregate specifications.

Conclusion

This Guinea granite aggregate line upgrade demonstrates that improving plant performance requires more than replacing individual machines—it requires a coordinated crushing and screening system designed around material characteristics and production targets.

For procurement managers and plant operators evaluating similar upgrades, the next step is to translate these insights into a practical plan. This typically includes reviewing current plant bottlenecks, confirming feed size and capacity requirements, and assessing whether existing crushers and screens are properly matched.

Leimeng supports this process with structured technical consultation. By sharing your material data, current equipment layout and production goals, you can receive a tailored configuration proposal, equipment selection guidance and estimated performance improvements.
