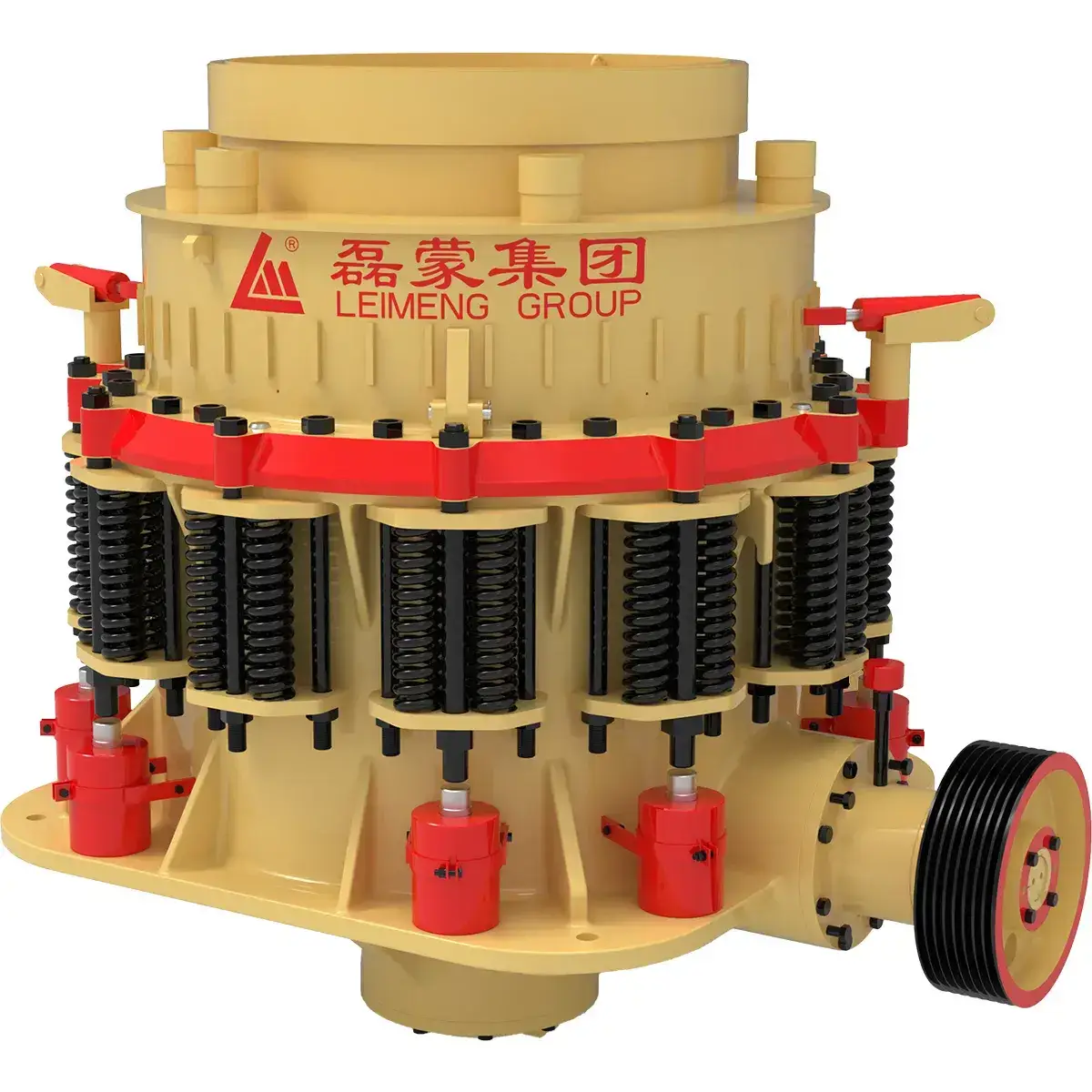

LMC Series Cone Crusher
(Spring, Secondary/Tertiary Crushing)
The LMC Series cone crusher is designed for secondary and tertiary crushing in quarry, mining and aggregate production lines. It is suitable for medium-hard materials with compressive strength below 300 MPa, including limestone, basalt, granite, river pebble, iron ore and non-ferrous metal ores.
Combining spring protection with hydraulic adjustment, the crusher supports stable operation, easier discharge setting and reliable overload protection.
With multiple cavity options for medium and fine crushing, the LMC Series helps produce consistent output size for stone crushing and aggregate production applications.
Applicable Materials
- Metal Ores
- Non-Metal Ores

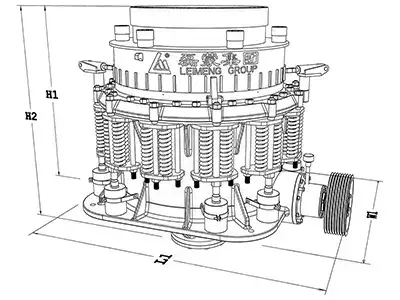

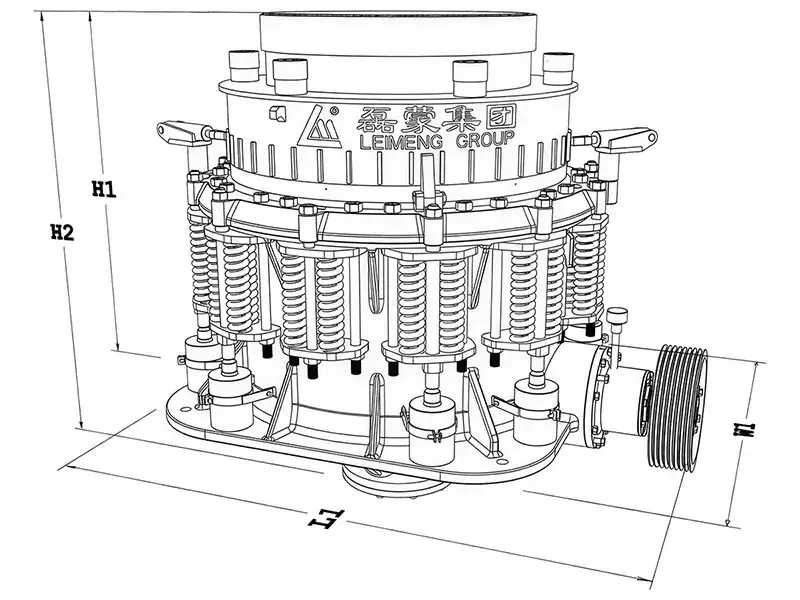

Dimensions
| Model | Length L1 (mm) | Width W1 (mm) | Height H1 (mm) | Height H2 (mm) |
| 2670 | 2000 | 1750 | 2250 | |
| 3000 | 2650 | 2330 | 3030 | |
| 3255 | 2650 | 2400 | 3240 | |
| 3500 | 2860 | 2765 | 2620 |
Technical Parameters
| Model | Max. feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Power (kW) |
| |
180 | 10-38 | 60-260 | 132 |
| |
215 | 10-51 | 122-440 | 220 |
| |
235 | 10-64 | 148-580 | 240 |
| |
267 | 10-64 | 180-725 | 320 |

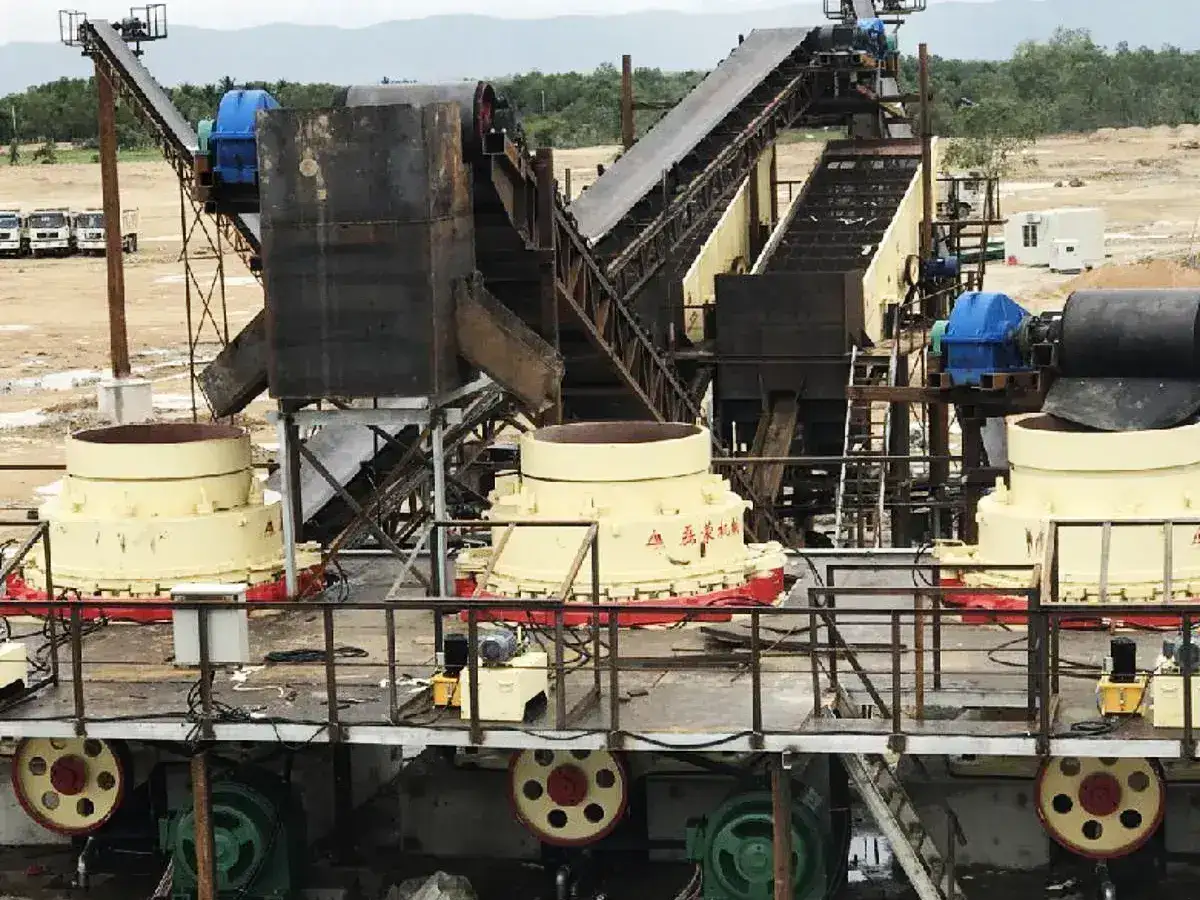

Projects
Aggregate Plant Project in the Philippines

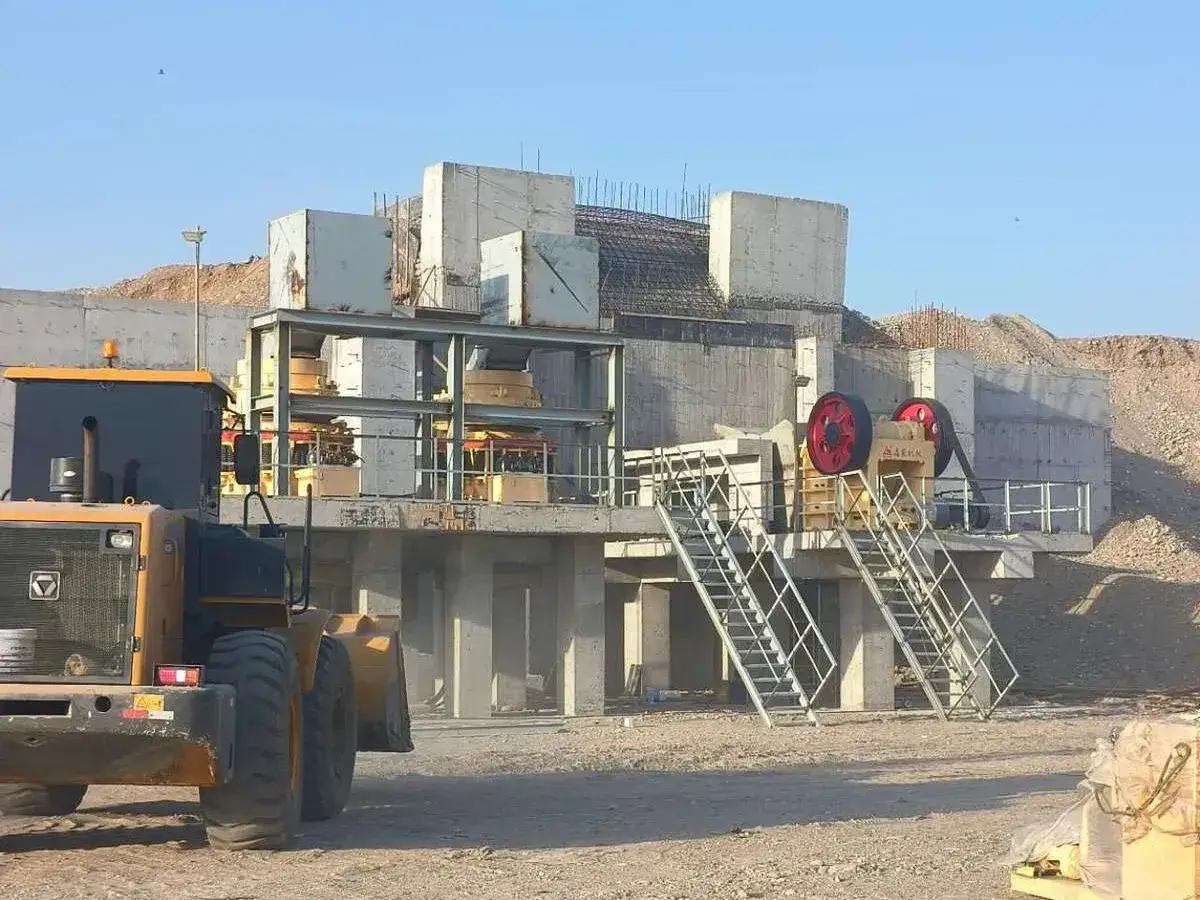

Aggregate Plant Project in Kazakhstan

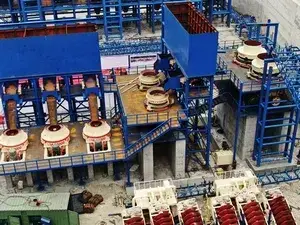

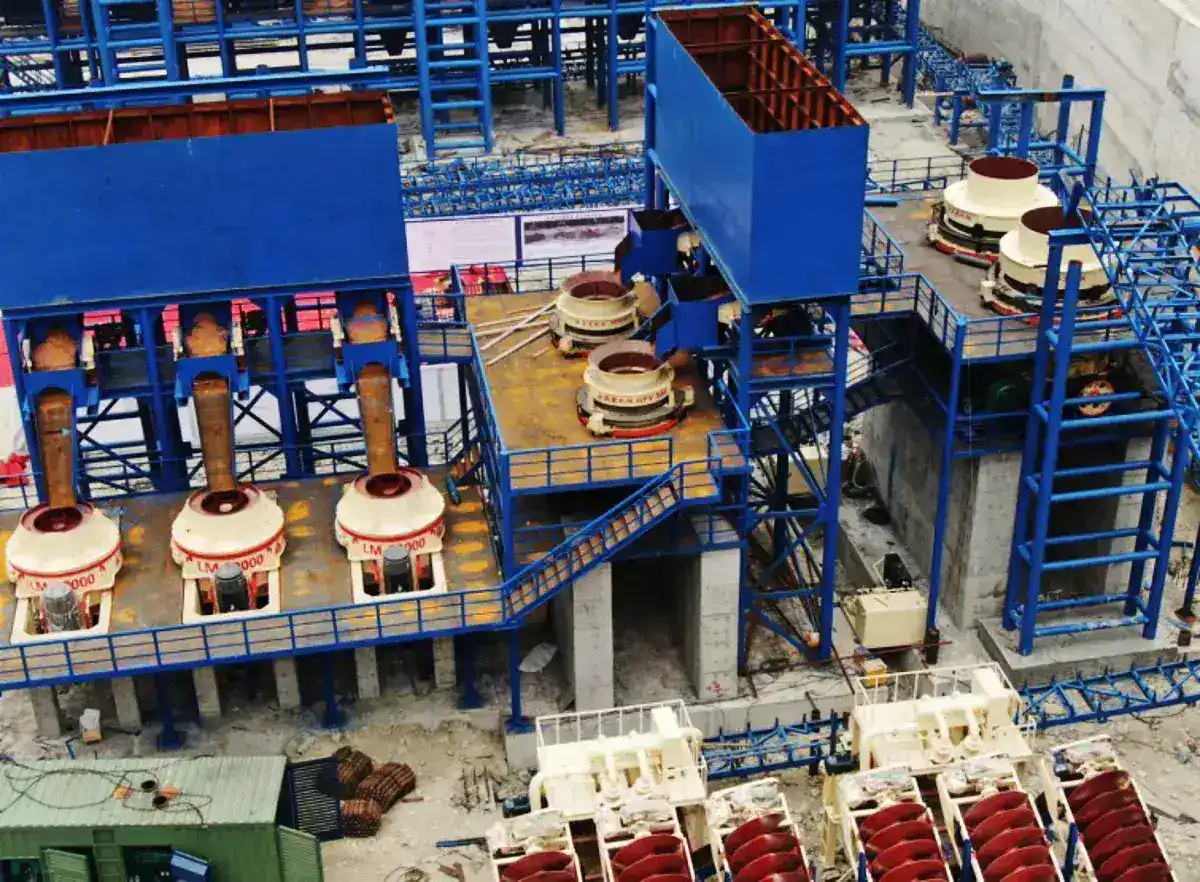

Aggregate Plant Project in Wenchuan, Sichuan (5 million tons per year)
Aggregate Production Line Project in Chonburi, Thailand

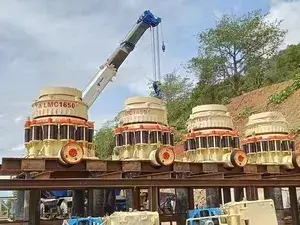

Aggregate Plant Project in Indonesia

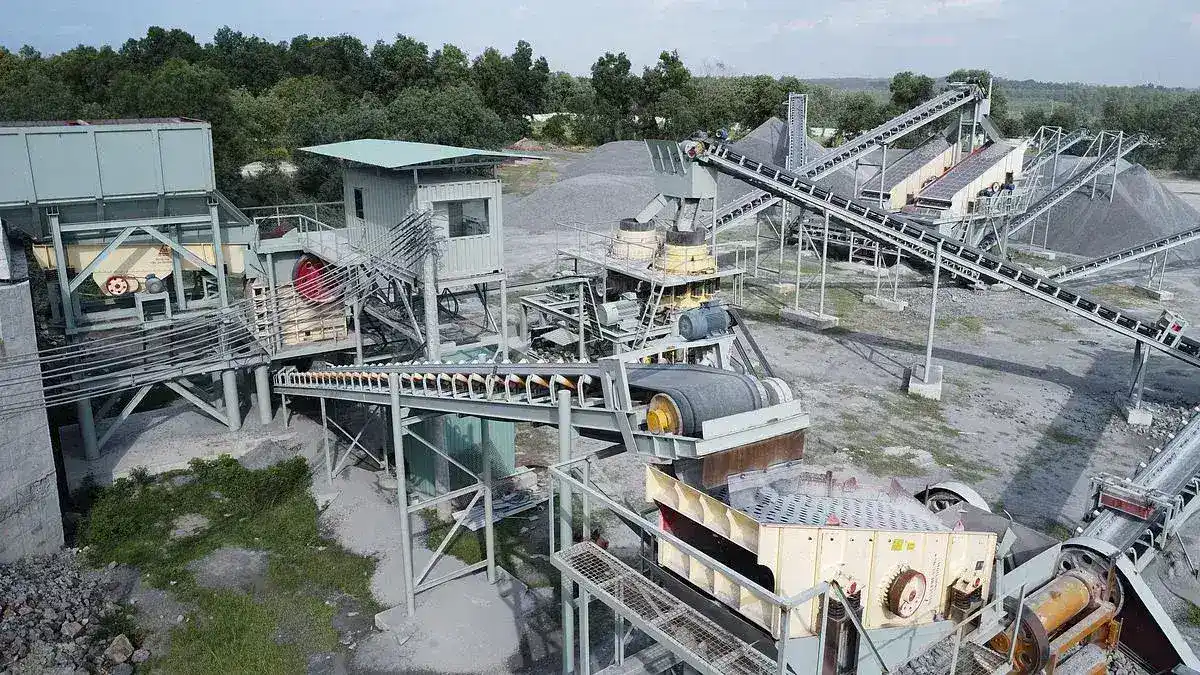

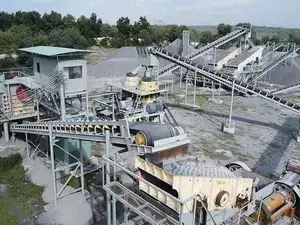

Aggregate Production Line Project in Binh Phuoc, Vietnam
