ZW Series Vibrating Feeder

(Linear)

The ZW series vibrating feeder is designed for continuous and uniform feeding before crushing or screening. It is suitable for quarry, mining, aggregate and sand production lines.

With a robust structure and adjustable vibration amplitude, it ensures stable operation, easy maintenance and reliable material flow.

Optional variable-frequency speed control allows flexible feeding rates to improve overall system efficiency.

Request a Quote
Applicable Materials
  • Metal Ores
  • Non-Metal Ores

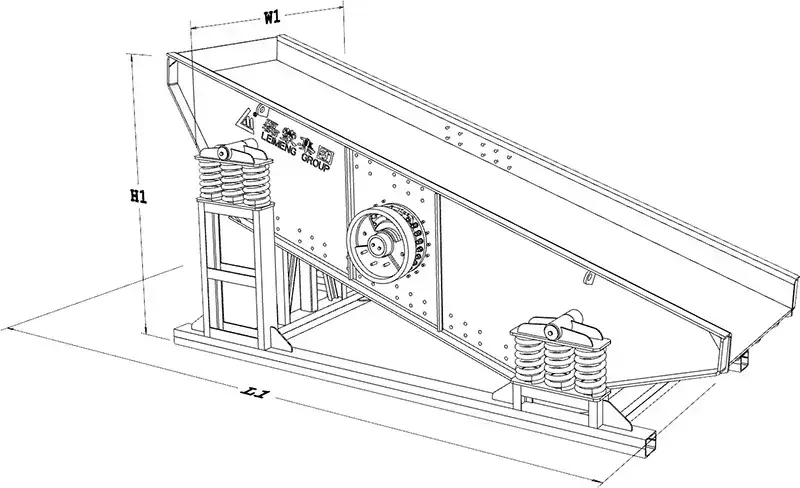

Dimensions
Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm)
ZW0820 1945 1420 1515
ZW0940 3885 1525 2015
ZW1020 1945 1620 1515
ZW1220 1945 1820 1515
ZW1420 1945 2020 1515
ZW1620 2102 2246 1508
ZW1150 4855 1765 2320
ZW1250 4855 1865 2320
ZW1260 5730 1945 2825
ZW1360 5730 2045 2825
ZW1560 5730 2245 2825
ZW1760 5730 2445 2825
ZW1820 1945 2446 1498
ZW1838 3825 2705 2390
ZW1845 4420 2750 2580
ZW1860 5730 2545 2825
ZW2060 5730 2745 2825
ZW2245 4420 3150 2580
Technical Parameters
Model Feeder trough size (mm) Max. feeding size (mm) Spindle speed (r/min) Double amplitude (mm) Installation inclination (°) Capacity (t/h) Power (kW)
ZW0820 800×2000 ≤200 500-850 8-10 14 80-200 11
ZW0940 900×4000 ≤500 500-850 8-10 14 80-200 15
ZW1020 1000×2000 ≤250 500-850 8-10 14 300-400 11
ZW1220 1200×2000 ≤250 500-850 8-10 14 350-600 15
ZW1420 1400×2000 ≤250 500-850 8-10 14 400-700 15
ZW1620 1600×2000 ≤250 500-850 8-10 14 450-800 18.5
ZW1150 1100×5000 ≤600 500-850 8-10 14 360-550 22
ZW1250 1200×5000 ≤700 500-850 8-10 14 400-600 30
ZW1260 1200×6000 ≤700 500-850 8-10 18 400-600 37
ZW1360 1300×6000 ≤700 500-850 8-10 18 450-800 37
ZW1560 1500×6000 ≤900 500-850 8-10 18 450-1100 45
ZW1760 1700×6000 ≤1000 500-850 8-10 18 500-1200 45
ZW1820 1800×2000 ≤250 500-850 8-10 14 400-850 22
ZW1838 1800×3800 ≤1000 500-850 8-10 20 650-2200 37
ZW1845 1800×4500 ≤1000 500-850 8-10 20 650-2200 45
ZW1860 1800×6000 ≤1000 500-850 8-10 18 550-1300 45
ZW2060 2000×6000 ≤1000 500-850 8-10 18 650-1400 55
ZW2245 2200×4500 ≤1000 500-850 8-10 20 800-2500 45
