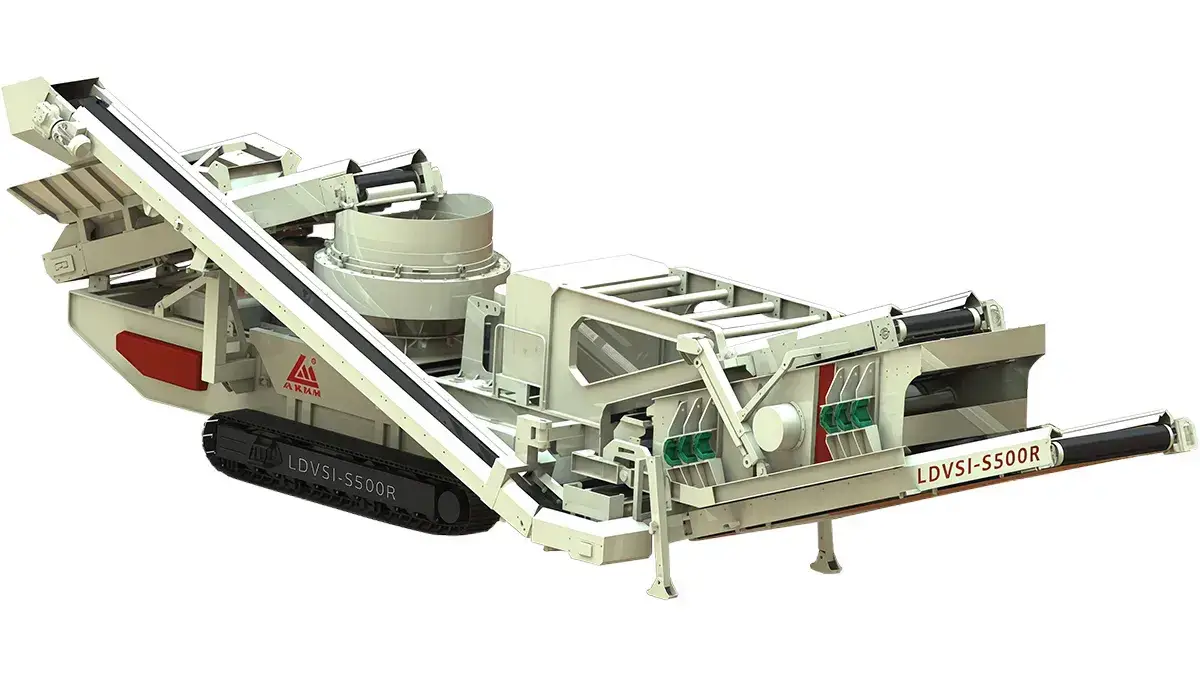

Crawler Mobile VSI Crusher Plant
Crawler Mobile VSI Crusher with Screening Plant
- The crawler mobile VSI crusher plant is designed for manufactured sand production and aggregate shaping. It is suitable for processing hard rock, tailings, recycled aggregates and other materials that require improved particle shape and controlled sand output.
- Equipped with a high-performance vertical shaft impact crusher, return screening system and PLC control system, the plant can return oversized material for re-crushing and improve the quality of the finished product. Its crawler mobile design supports quick relocation and flexible on-site operation.
- Optimized Rotor Design: The VSI crusher features an advanced rotor structure that enhances crushing efficiency while reducing wear and maintenance frequency.
- Adjustable Feed and Discharge Settings: Flexible control over feed size and output grading allows the plant to adapt to different sand specifications and project requirements.
- Integrated Dust Suppression System: Designed to reduce dust emissions during operation, helping improve working conditions and meet environmental standards.
Applicable Materials
- Metal Ores
- Non-Metal Ores
Specifications
| Model | ||||
| Feeder | Loading height (mm) | 2400 | 2500 | 2600 |
| Size (length×belt width) | 6m×B650mm | 6m×B1000mm | 6m×B1000mm | |
| Output belt conveyor | Discharge height(mm) | 3150 | 3150 | 3150 |
| Size (length×belt width) | 6m×B650mm | 7.5m×B1000mm | 7.5m×B1000mm | |
| Return screen | Screen decks | 2 | 2 | 2 |
| Model | 3YKJ1232 | 3YKJ1550 | 3YKJ1550 | |
| Transfer belt conveyor | Capacity (t/h) | 150 | 200 | 250 |
| Size (length×belt width) | 3.5m×B500mm | 3.5m×B500mm | 3.5m×B500mm | |
| Return belt conveyor | Size (length×belt width) | 10m×B500mm | 11m×B500mm | 11m×B500mm |
| Main belt conveyor | Size (length×belt width) | 8.5m×B650mm | 10m×B1000mm | 11.5m×B1000mm |
| Overall stone crusher plant | Crushing capacity (t/h) | 50-80 | 100-120 | 120-150 |
| Total power (kW) | 356 | 441 | 537 | |
