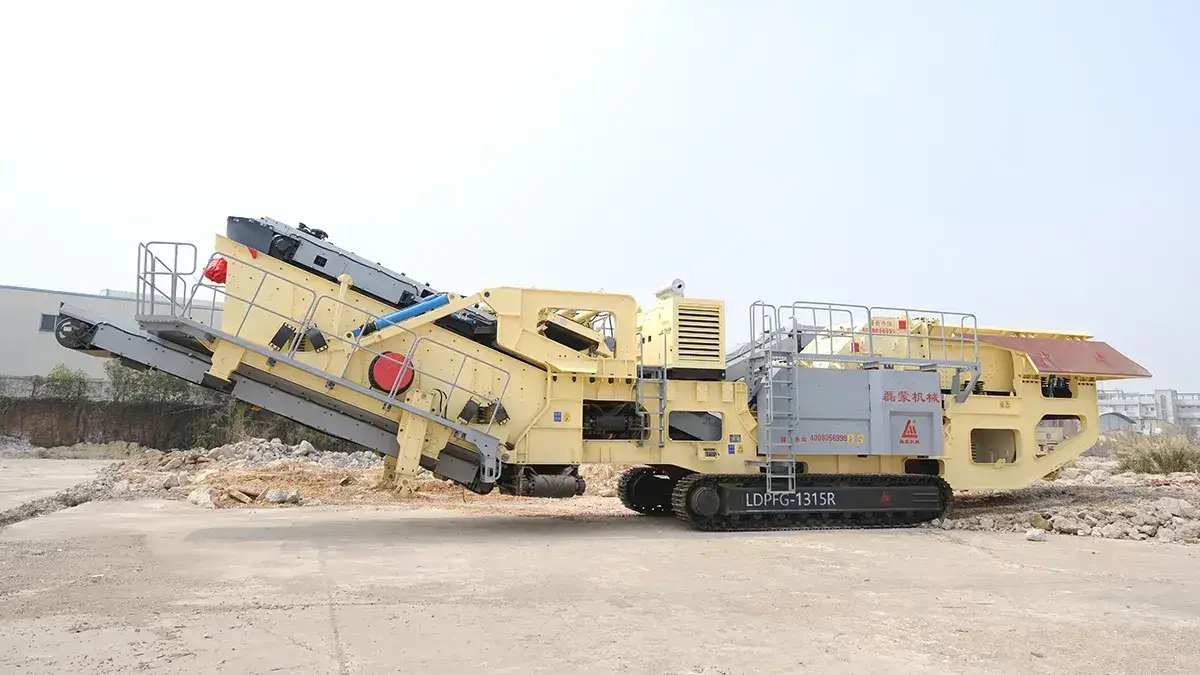

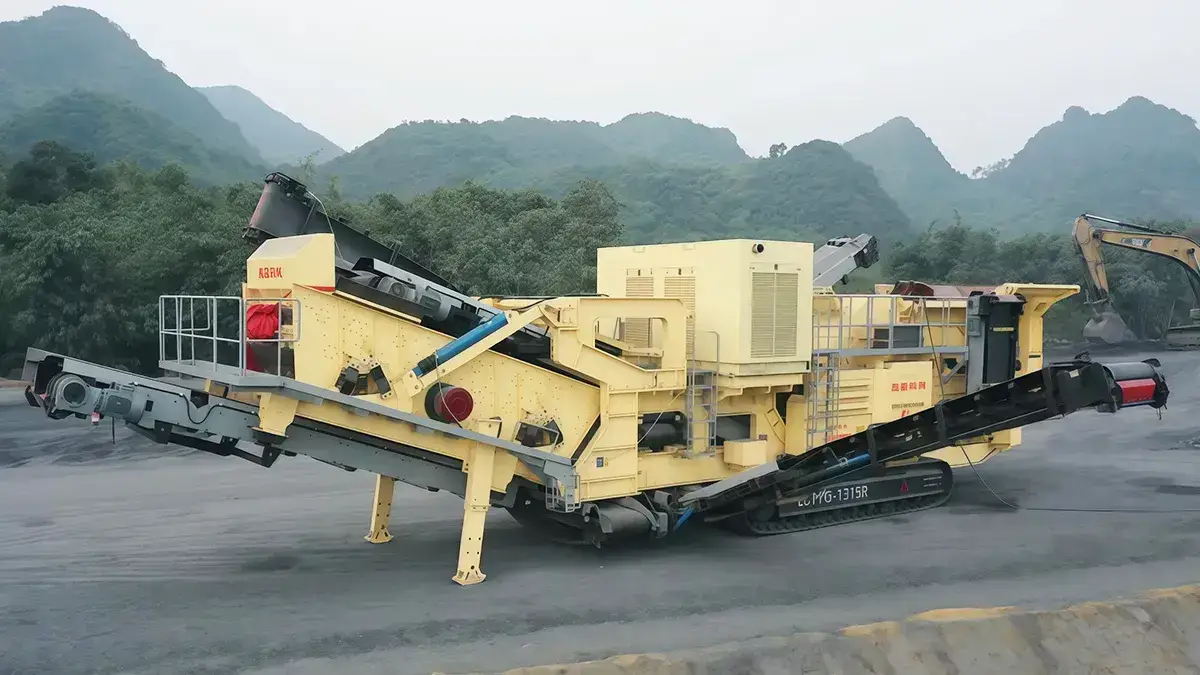

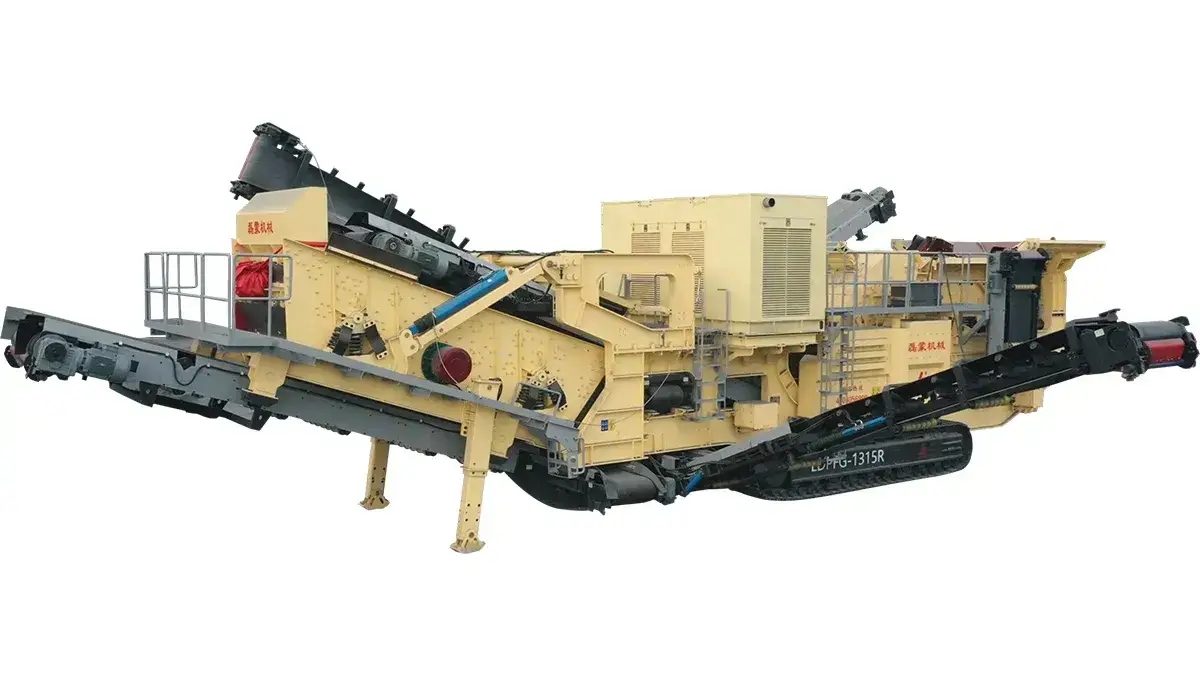

Crawler Mobile Impact Crusher Plant
Crawler Mobile Impact Crusher with Screening Plant

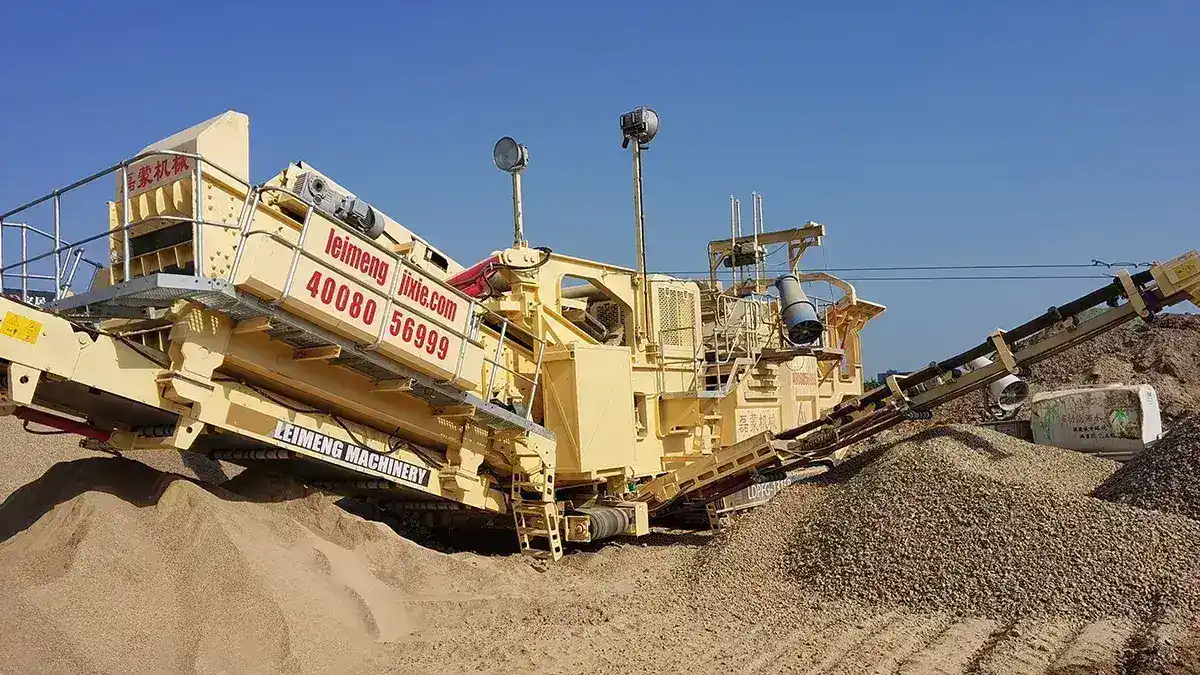

The crawler mobile impact crusher plant is designed for on-site crushing and screening of medium-hard materials. It is suitable for limestone, construction waste, concrete waste, recycled aggregates and other materials that require flexible site operation.
Equipped with a heavy-duty impact crusher, large crushing chamber and hydraulic opening system, the plant supports stable crushing performance, easy maintenance and efficient relocation between job sites. It can help produce well-shaped aggregates for road construction, concrete production and recycling applications.
- High-Performance Crushing: Heavy-duty rotor and large crushing chamber support efficient crushing and good aggregate shape.
- Flexible Mobility: Crawler mobile design allows quick relocation between job sites and is suitable for temporary or changing project locations.
- Easy Maintenance: Hydraulic opening design helps simplify inspection, maintenance and wear-part replacement.
Applicable Materials
- Metal Ores
- Non-Metal Ores
Technical Specifications
| Model | |||||
| Overall stone crusher plant | Capacity (t/h) | 130-200 | 180-280 | 220-350 | 220-350 |
| Power(kW) | 240 | 270 | 332.7 | 343.7 | |
| Feeder | Model | GZD1040 | GZD1040 | GZD1245 | GZD1245 |
| Power(kW) | 5×2 | 5×2 | 5×2 | 5×2 | |
| Impact crusher | Model | PFG1214 | PFG1313 | PFG1315 | PFG1315 |
| Power(kW) | 160 | 200 | 250 | 250 | |
| Vibrating screen | Model | 2YKJ1340 | 2YKJ1845 | 3YKJ2250 | 3YKJ2250 |
| Power(kW) | 7.5×2 | 9×2 | 11×2 | 11×2 | |
| Mud conveyor | Size (length×belt width) | 6m×B500mm | 6m×B650mm | 6m×B650mm | 6m×B650mm |
| Power(kW) | 3 | 5.5 | 5.5 | 5.5 | |
| Main conveyor | Size (length×belt width) | 10.5m×B1200mm | 11m×B1200mm | 12m×B1200mm | 12m×B1200mm |
| Power(kW) | 11 | 15 | 15 | 15 | |
| Underscreen conveyor | Size (length×belt width) | 7m×B1000mm | 8m×B1200mm | 8m×B1200mm | 8m×B1200mm |
| Power(kW) | 11 | 11 | 11 | 11 | |
| Iron removal conveyor | Size (length×belt width) | 3m×B800mm | 3m×B800mm | 3m×B800mm | 3m×B800mm |
| Power(kW) | 3.2 | 3.2 | 3.2 | 3.2 | |
| Side conveyor 1 | Size (length×belt width) | 9m×B500mm | 9m×B650mm | / | 9m×B650mm |
| Power(kW) | 5.5 | 5.5 | / | 5.5 | |
| Side conveyor 2 | Size (length×belt width) | / | / | / | 9000×B650 |
| Power(kW) | / | / | / | 5.5 | |
| Return transfer conveyor | Size (length×belt width) | 3m×B500mm | 4m×B650mm | 4m×B650mm | 4m×B650mm |
| Power(kW) | 3 | 3 | 5.5 | 5.5 | |
| Return conveyor | Size (length×belt width) | 11m×B500mm | 11m×B500mm | 11m×B650mm | 11m×B650mm |
| Power(kW) | 11 | 11 | 11 | 11 | |
