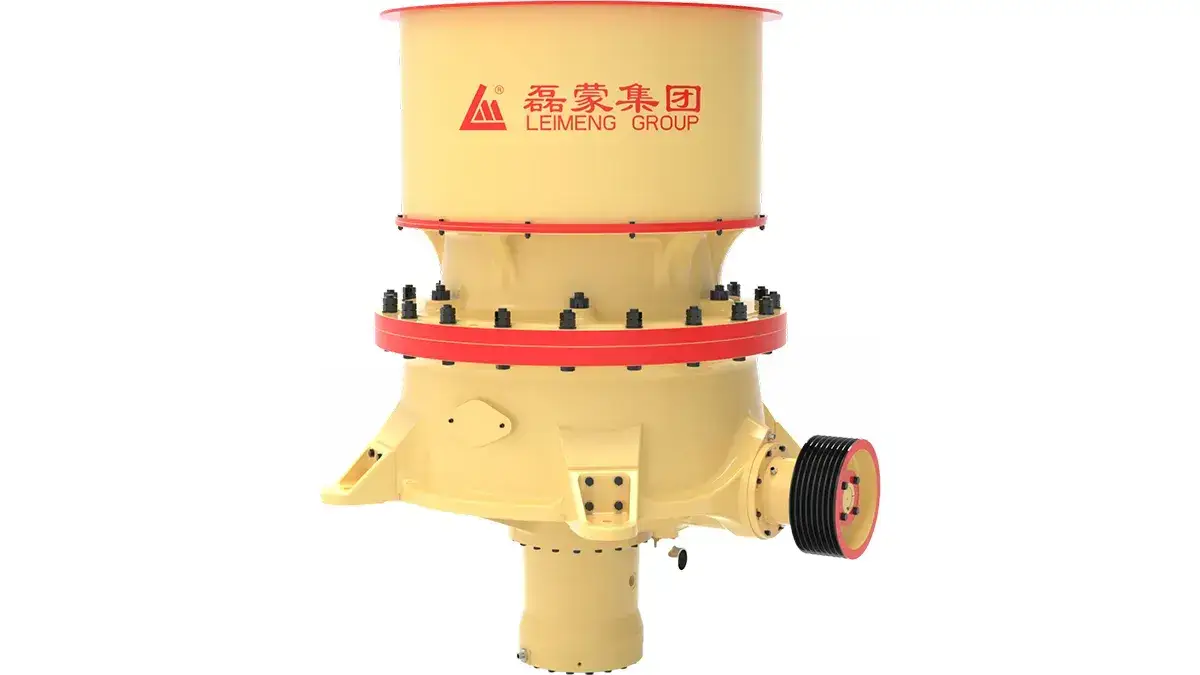

DH/DS Series Cone Crusher

(Single-Cylinder)

The DH/DS Series single-cylinder hydraulic cone crusher is designed for secondary and fine crushing in quarry, mining and aggregate production lines. It is suitable for medium-hard to hard materials such as granite, basalt, limestone, river stone and metal ores.

Equipped with hydraulic adjustment, overload protection, automatic chamber clearing and intelligent control, it ensures stable operation, easy maintenance and real-time monitoring.

Its single-cylinder design improves crushing efficiency, reduces downtime and delivers consistent aggregate shape.

Request a Quote
Applicable Materials
  • Metal Ores
  • Non-Metal Ores
Features
  • Optimized Structural Design: The large-diameter main shaft and heavy-duty frame improve rigidity and support long service life under demanding working conditions.
  • Heavy-Duty Rolling Bearings: Heavy-duty rolling bearings help reduce friction, improve operating stability and support higher production capacity.
  • Hydraulic Control System: Hydraulic adjustment allows easier discharge setting and provides reliable overload protection during operation.
  • Adjustable Stroke Design: The crushing stroke can be adjusted according to material characteristics and production requirements.
  • Automatic Control System: The automatic control system supports stable operation, easier monitoring and safer performance within operating limits.
  • Inter-Particle Crushing Principle: The optimized chamber design uses inter-particle crushing to produce consistent particle shape and improve aggregate quality.
  • Easy Maintenance Design: The split upper frame design makes inspection and maintenance easier, helping reduce service time and maintenance costs.
  • Spiral Bevel Gear Transmission: Spiral bevel gear transmission improves load-bearing capacity and supports smooth, stable operation.

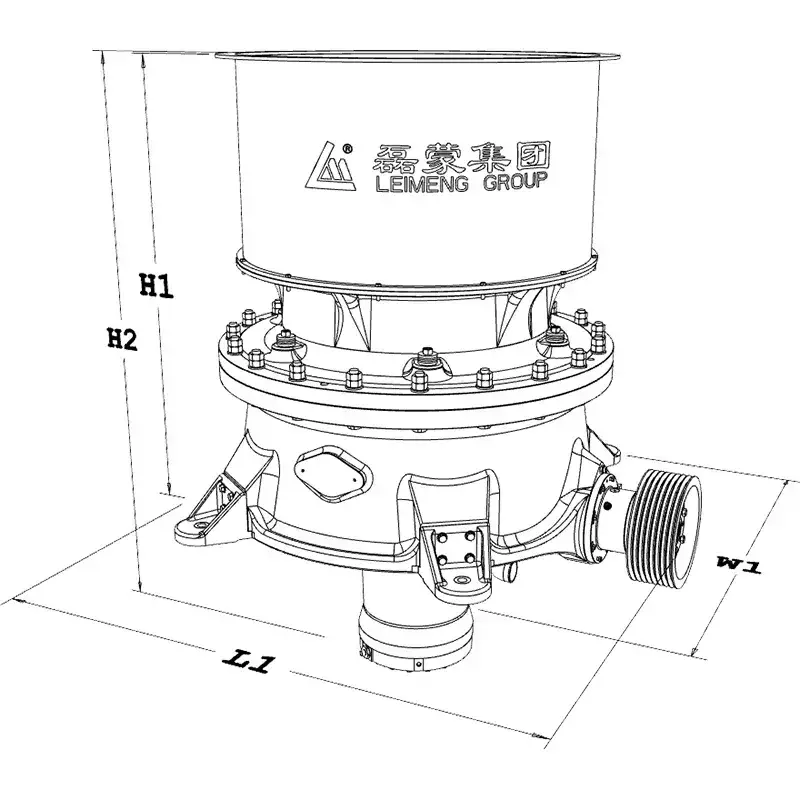

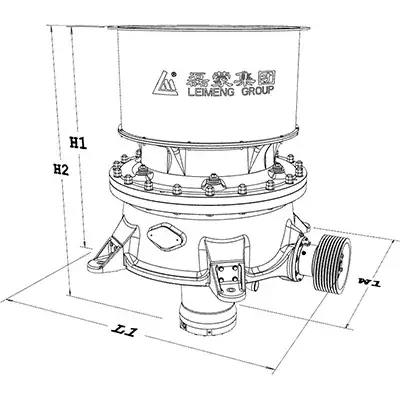

Dimensions
Model Length L1 (mm) Width W1 (mm) Height H1 (mm)
DH280 1500 1300 2460
DH380 1935 1860 2630
DH480 2484 2150 3230
DH680 2700 2450 3560
DH780 3394 2870 4625
DH980 3621 3100 5280
DS280 1500 1300 2820
DS380 1935 1860 3130
DS480 2484 2150 3750
DS680 3394 2450 4750
DS780 3520 2870 5900
Dimensions
Technical Parameters
Model Max. feeding size (mm) Discharging size (mm) Capacity (t/h) Power (kW)
DH280 135 4-32 27-128 90
DH380 185 6-38 48-208 132
DH480 215 8-44 90-395 220
DH680 275 13-51 192-662 315
DH780 300 10-70 280-1512 560
DH980 370 16-70 368-2600 750
DS280 240 19-38 70-168 90
DS380 360 19-54 91-344 132
DS480 450 25-54 195-601 250
DS680 560 38-83 318-1050 355
DS780 600 60-120 1200-2000 630
Projects

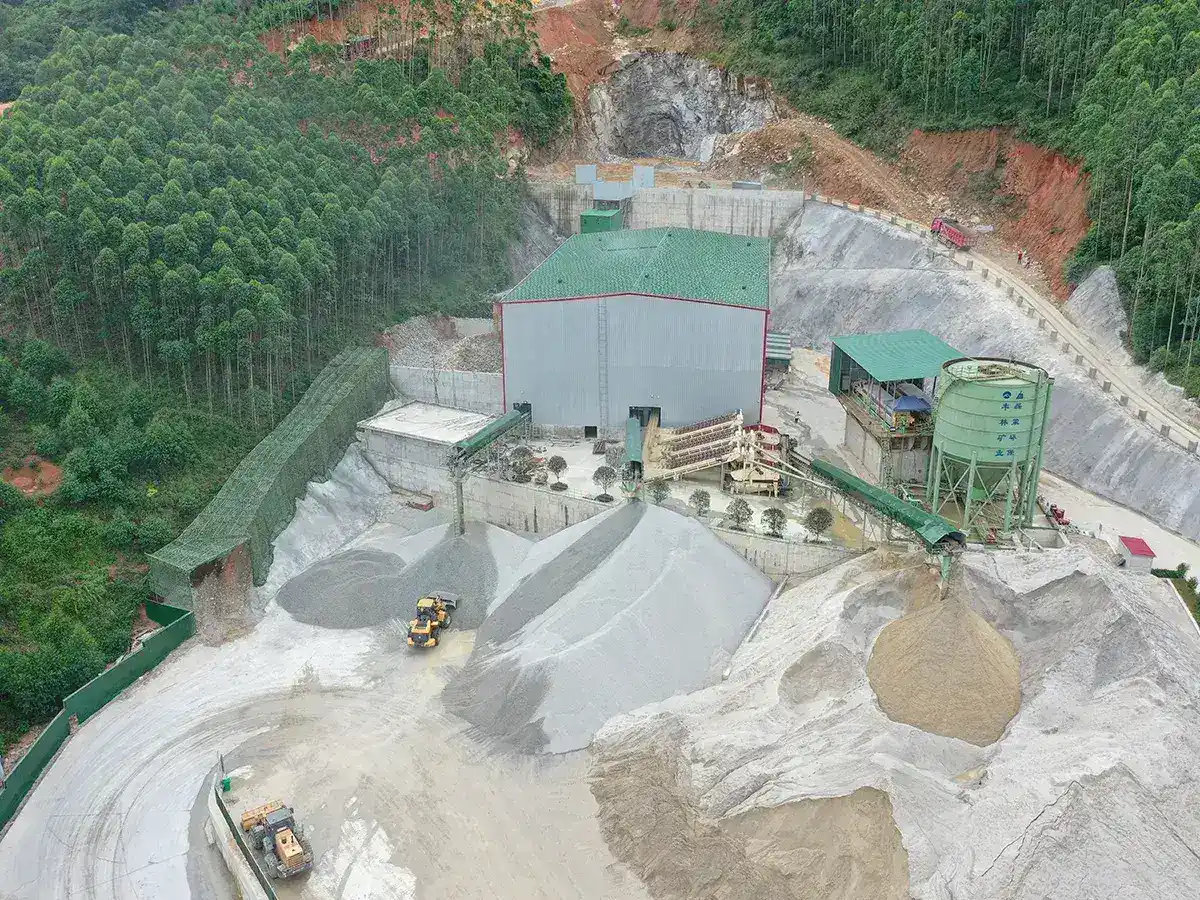

Aggregate Plant Project of Wuzhou City Construction Investment Group in Guangxi (15 million tons per year)Aggregate Plant Project of Wuzhou City Construction Investment Group in Guangxi (15 million tons per year)

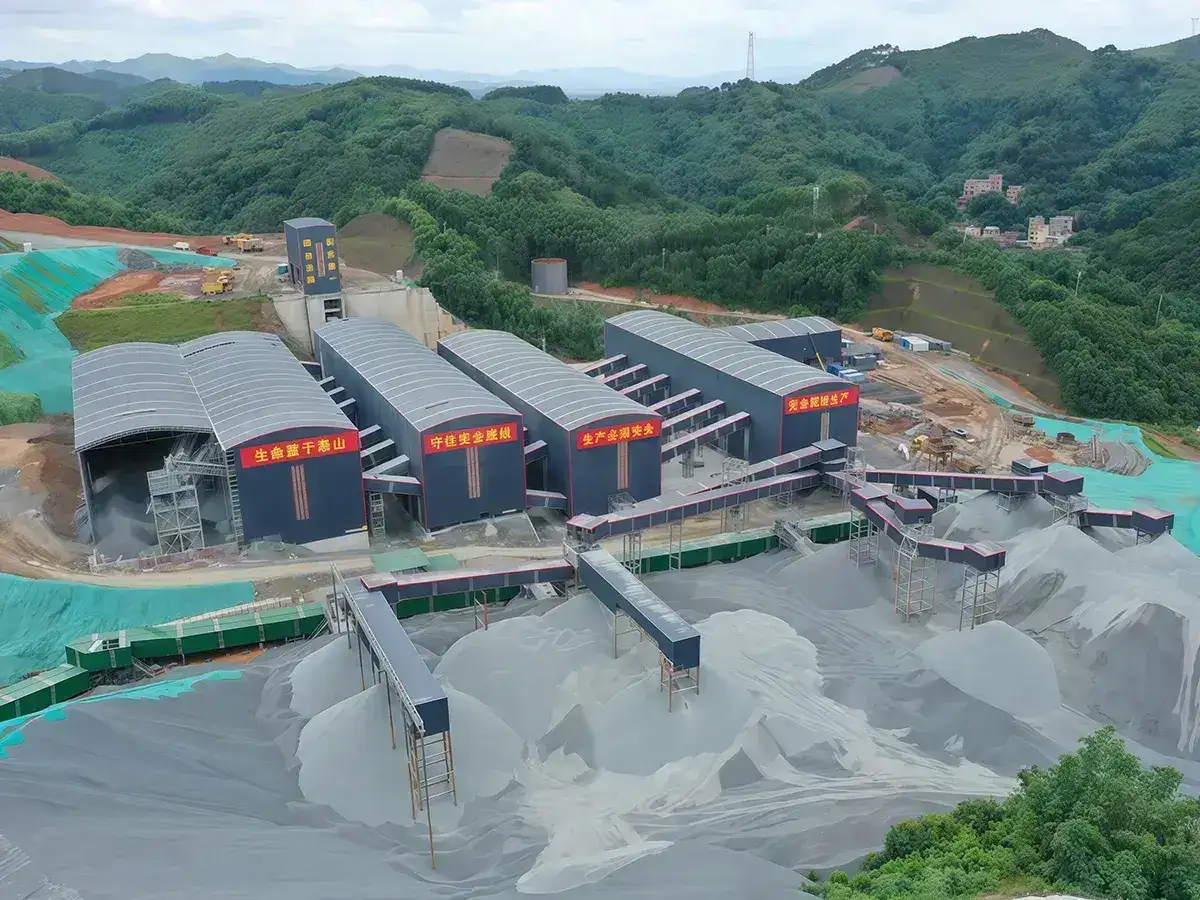

Aggregate Plant Project of Fenglin Mining Company in GuangxiAggregate Plant Project of Fenglin Mining Company in Guangxi

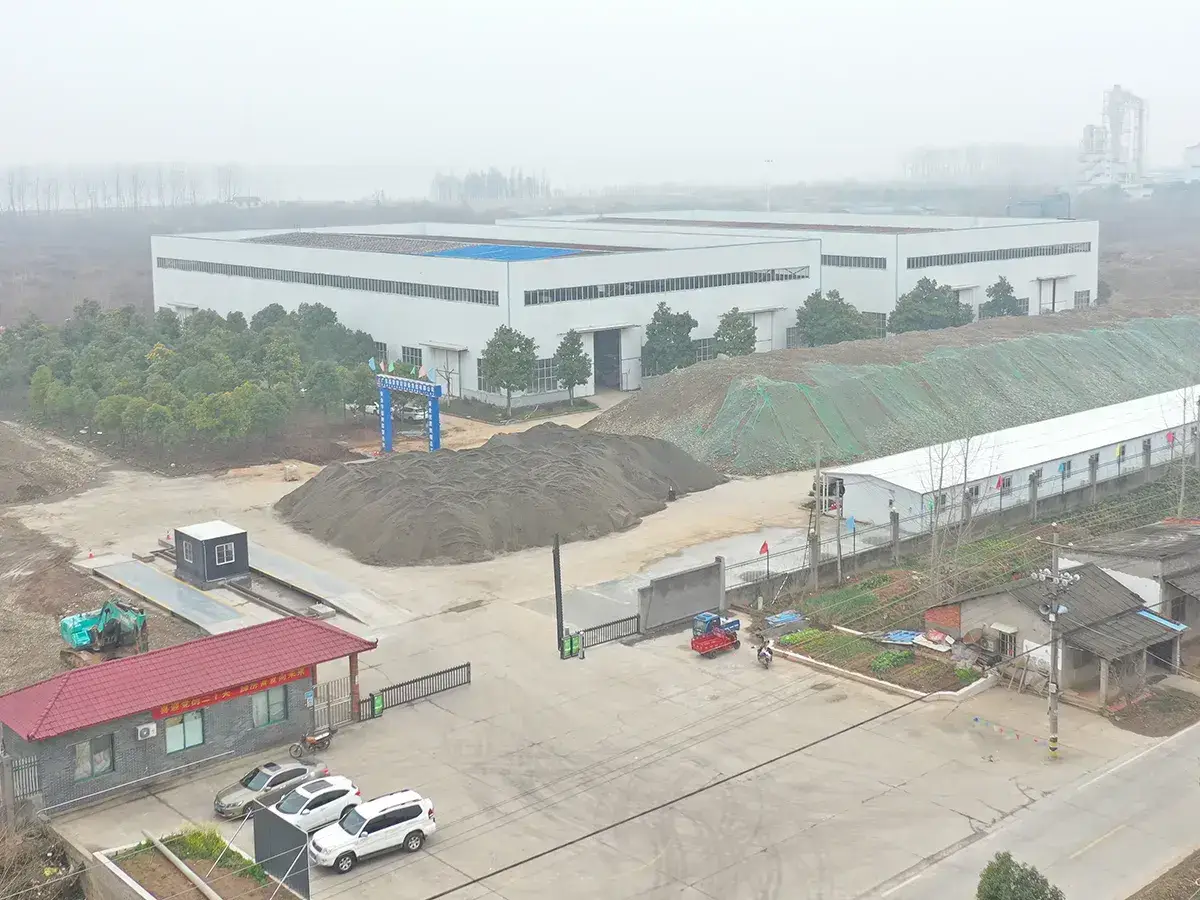

EPCO Green Building Materials Processing Project of Changtou Jinrunyuan in HubeiEPCO Green Building Materials Processing Project of Changtou Jinrunyuan in Hubei

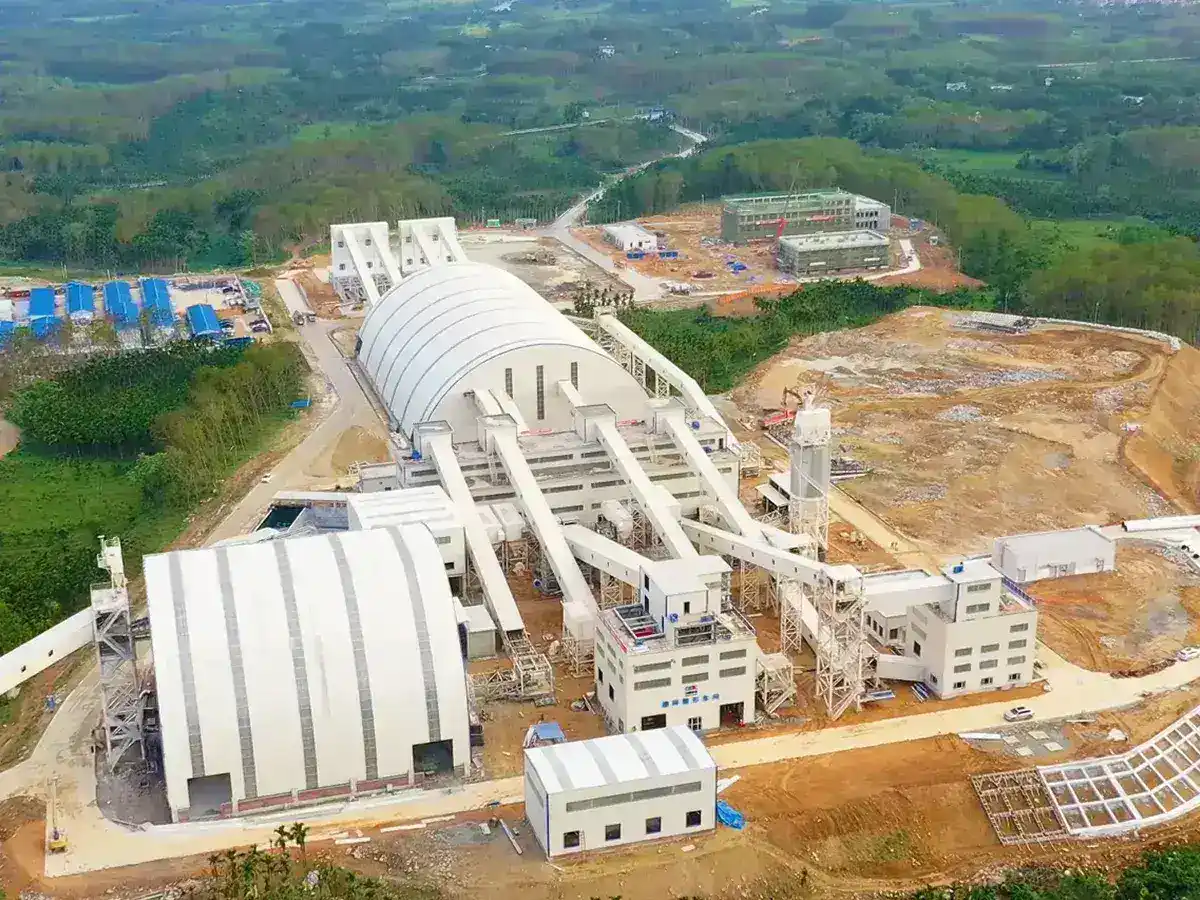

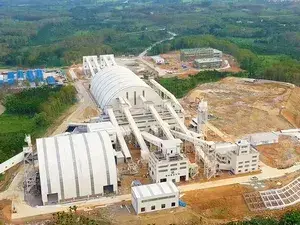

Aggregate Plant Project of China Gezhouba Group in Ding'an, HainanAggregate Plant Project of China Gezhouba Group in Ding'an, Hainan
