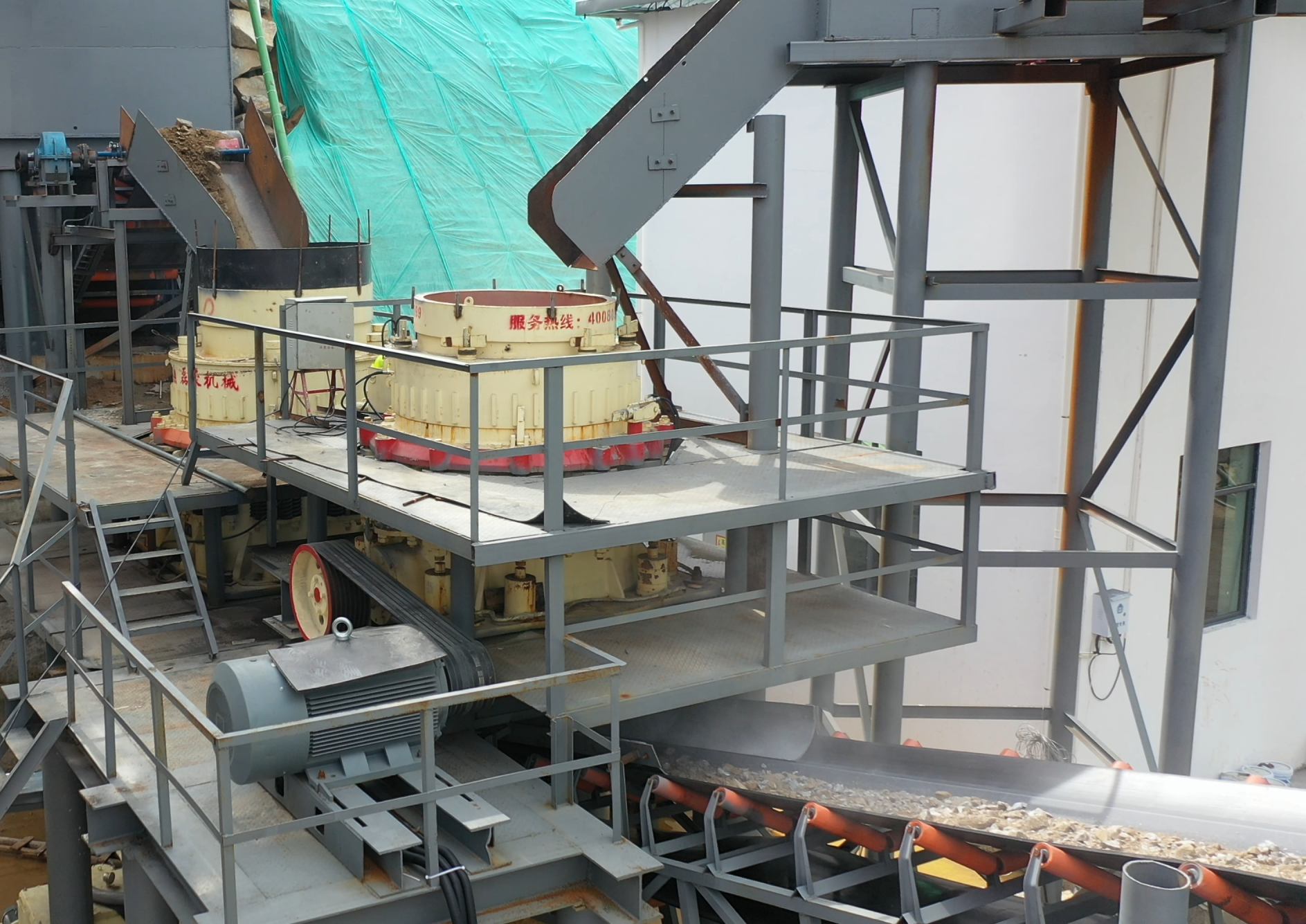

Cone Crusher Capacity: Why the Same Model Gives Less Output

The same cone crusher model can deliver different outputs at different quarries because the model number does not describe the full operating conditions. Granite, basalt and limestone differ in how they break and how much wear they cause. Feed grading, chamber selection, discharge setting and screening then determine how much saleable aggregate the plant produces.

Before comparing capacity figures, check whether both plants process similar feed and produce the same aggregate sizes.

1. First, Check What “Capacity” Means

A capacity figure can refer to three different measurements:

These figures are connected, but they are not interchangeable.

Consider a simplified closed circuit. A cone crusher processes 250 t/h, consisting of 180 t/h of fresh feed and 70 t/h of returned oversize. Its throughput is 250 t/h, but it is not producing 250 t/h of new finished material.

This is an illustrative material balance, not a Leimeng production guarantee. At steady state, with no losses or other outlets, the circuit’s finished output would equal the fresh feed: 180 t/h.

Now consider operating time. A plant may achieve a good hourly rate while running, yet lose substantial shift production because of blocked chutes, interrupted feeding or maintenance.

Before comparing projects, ask whether both figures describe the same measurement, product specification and operating period.

2. Granite, Basalt and Limestone Behave Differently

A cone crusher reduces rock through compression between the mantle and concave. In a properly filled chamber, particles also break against other particles. How readily the feed breaks affects the work needed to produce the required sizes.

However, rock names alone cannot establish a capacity ranking.

Mineral hardness, rock strength and abrasiveness describe different properties. A Mohs hardness value alone cannot predict cone crusher capacity. For equipment selection, it needs to be considered alongside rock strength, fracture structure, abrasiveness and representative crushing test results.

Granite: Check Crushability and Wear Separately

Granite commonly contains quartz and feldspar. Quartz-bearing feed can create abrasive conditions, while the rock’s strength and fracture structure influence how it breaks.

These are separate issues. Crushability affects the work needed to reduce the rock. Abrasiveness affects wear on the parts doing that work.

A granite application therefore needs attention to both production and liner condition. A crusher that performed well with new liners may behave differently after the chamber profile has worn.

Basalt: A Single Name Covers Different Feed Conditions

Compact basalt and highly weathered basalt should not be treated as identical feed.

Compare representative samples from the quarry, including changes between extraction areas. Record whether the material arrives as clean, strong fragments or contains weathered fines and clay.

A capacity estimate based only on the word “basalt” misses these differences.

Limestone: Easier Crushing Does Not Remove Other Bottlenecks

Many clean, low-abrasive limestones can be less demanding to crush than strong granite or basalt. Nevertheless, limestone containing wet clay may restrict production through screen blinding, chute buildup and unstable feeding.

A limestone plant can therefore produce less finished aggregate even when the rock itself breaks readily.

There is no reliable universal rule that limestone always gives the highest output, followed by granite and basalt. Representative material information and comparable operating conditions are needed.

3. Feed Size, Chamber Selection and CSS Must Work Together

Two projects can use the same crusher model with different crushing chambers and discharge settings.

Maximum Feed Size Is Only Part of the Picture

A statement such as “the feed is below 150 mm” does not describe its full size distribution.

One feed may contain mostly particles close to that upper size. Another may contain a balanced range of coarse and smaller particles. Their behaviour in the chamber can differ.

Oversized or slab-shaped pieces can restrict entry. Excessive fines, particularly with sticky material, can contribute to packing. The acceptable feed distribution depends on the crusher and chamber design.

Check the actual jaw crusher discharge and the combined feed reaching the cone, including returned material.

The Chamber Must Match the Duty

A coarse chamber used for secondary crushing and a finer chamber used for tertiary crushing perform different tasks.

Selection should consider the feed distribution, target reduction and permitted setting range. Changing to a finer chamber does not automatically increase useful production.

A Smaller CSS Changes the Capacity Comparison

The closed side setting (CSS) is the minimum gap between the mantle and concave at the discharge zone during the crushing cycle.

Reducing CSS generally shifts the product toward smaller sizes and can reduce throughput. Opening it may increase throughput, but it can also send more oversize back from the screen. Capacity and permissible CSS depend on chamber configuration and feed characteristics.

Suppose one project accepts a coarser product while another requires more material below a smaller screen opening. The second circuit may need more crushing work and more recirculation, despite using the same model.

CSS is not a guarantee of maximum product size. Final size control still depends on screening.

Check the Actual Operating Speed

Also check that the crusher runs at the speed specified for its configuration. Where a belt drive is used, belt slip can reduce actual crusher speed even while the motor is running. Check the drive condition against the equipment manual before attributing low output entirely to the rock.

4. Stable Feeding Matters More Than Simply Feeding More

Cone crushers generally benefit from a controlled, well-distributed feed that maintains the chamber level recommended for the application.

This is commonly called choke feeding. It supports particle-to-particle crushing, but it does not mean forcing material into an overloaded machine.

A crusher receiving intermittent loads may alternate between an underfilled chamber and excessive load. Uneven distribution can also produce uneven liner wear. Feed level and distribution should follow the specific equipment guidance.

Check the buffer bin, feeder control, chute arrangement and segregation at the inlet. If feeding stops whenever the upstream jaw crusher pauses, the cone may need a better buffer arrangement rather than a larger motor.

Moisture should also be assessed together with fines and clay. Damp, clean stone and damp, clay-rich stone do not behave the same way.

Depending on the material and product requirements, the solution may involve scalping, improved chute design, better stockpile management or washing. Washing should be justified by the application and water-handling arrangements.

5. Screening and Return Load Can Limit Finished Output

In a closed circuit, oversize returns to the cone crusher.

Some recirculation is necessary to achieve the target grading. However, ineffective screening can send particles back that are already small enough to become finished product.

Look for:

1. Blinded or pegged screen openings.
2. Excessive bed depth.
3. Uneven feed distribution across the screen.
4. Screen media with insufficient open area.
5. A mismatch between screen duty and feed conditions.

When this happens, the cone spends part of its capacity processing material that should already have left the circuit.

Conveyors and transfer points also need checking. A restricted discharge belt, slipping drive or blocked chute can interrupt production even when the crusher has available capacity.

Bulk density adds another complication. Tonnes per hour measure mass, while bins, chambers and conveyors also handle volume. Different feed bulk densities can change the relationship between volumetric flow and measured tonnage.

Measure fresh feed, return load and finished output separately. A high crusher discharge rate alone does not demonstrate a well-performing plant.

6. Diagnose the Limitation Before Changing the Machine

Use operating records to narrow the investigation.

These observations guide troubleshooting; they do not establish a diagnosis on their own.

Make one controlled change at a time and compare results under similar feed conditions. Track finished product grading as well as tonnage. A higher crusher throughput offers little benefit if the plant produces less aggregate in the required size fractions.

Adjustments should remain within the crusher’s permitted operating limits.

7. Match the Leimeng Cone Crusher to the Whole Circuit

Leimeng Group provides cone crushers for secondary and tertiary crushing, including the LMC series with different chamber options. Selection should connect the feed material and required product to the appropriate model, chamber and process arrangement.

Planning a granite, basalt or limestone crushing plant? Send Leimeng Group your rock type, required capacity, maximum feed size, target output sizes and project location. Our team can use these details to discuss cone crusher selection and the crushing and screening layout.

If an existing plant is producing below expectations, also share its crusher model, chamber, CSS and a short operating video. More detailed measurements can follow as the investigation develops.

Contact Leimeng Group to discuss your material, target capacity and required aggregate sizes.

FAQ

Why does the same cone crusher produce different outputs?

Different rock properties, feed distributions, chambers, settings and operating conditions change throughput. Screening efficiency and downtime also affect finished production.

Does basalt always produce less than granite?

No. The rock name does not establish a fixed ranking. Compare representative feed properties and operating conditions.

Does a smaller CSS increase production?

It generally produces a finer grading and may reduce throughput. Assess finished output and return load before judging the benefit.

Can screening reduce cone crusher output?

Poor screening can increase unnecessary recirculation, leaving less crusher capacity available for fresh feed.

Is catalog capacity the same as finished plant output?

Do not assume so. Confirm the stated feed conditions, configuration and measurement basis, then account for screening, recirculation and operating time.
