Tracked Mobile Sand Making Machine VSI320 | Leimeng
Tracked Mobile Sand Making Machine for Manufactured Sand Production
As demand for manufactured sand, also known as M-sand, continues to grow in aggregate, concrete and infrastructure projects, producers are increasingly looking for sand-making equipment that can deliver stable output, improved particle shape, and easier site mobility. For projects with changing working locations or limited civil construction conditions, a tracked mobile sand making machine can be a practical alternative to a fixed sand-making line.

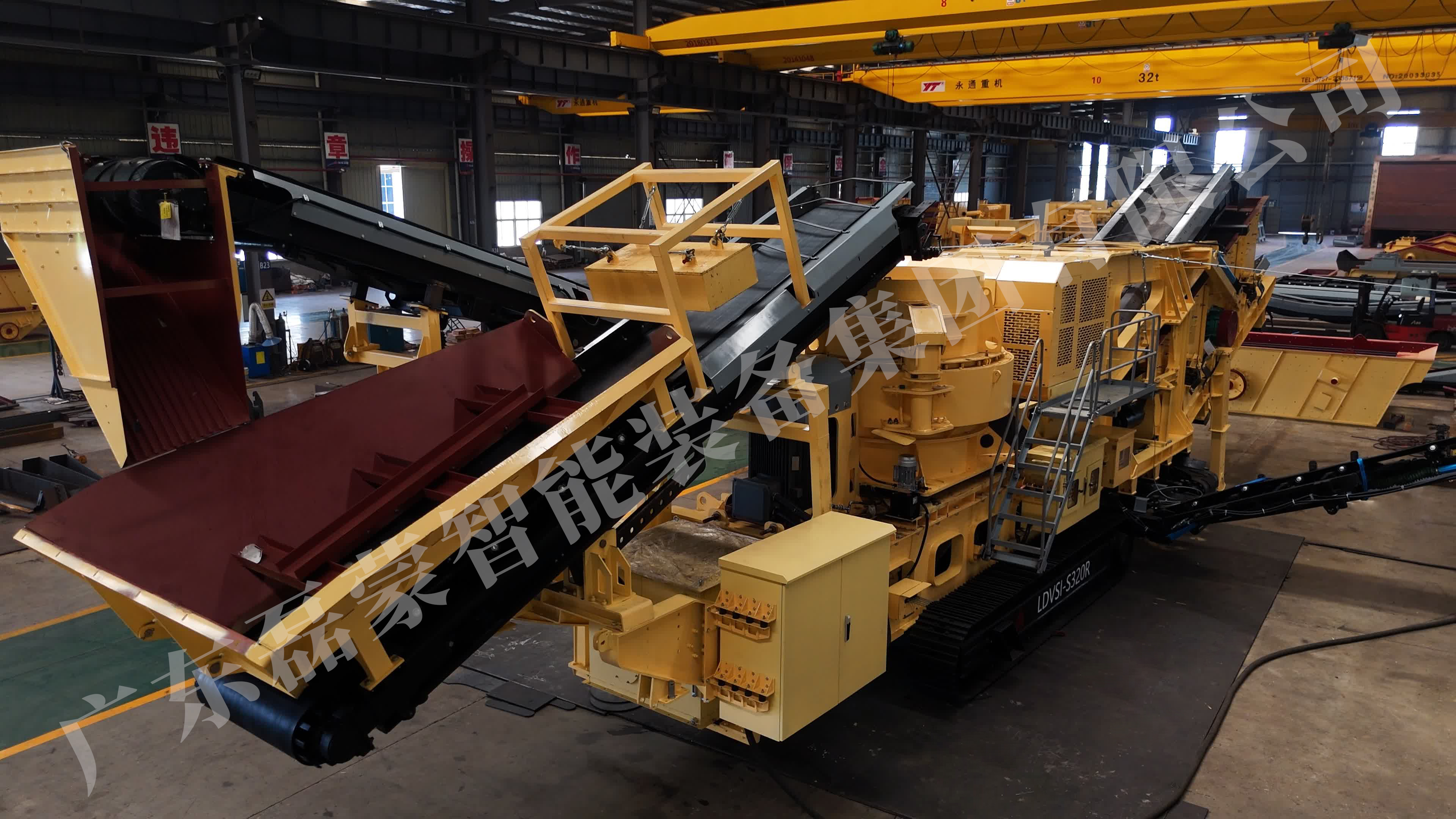

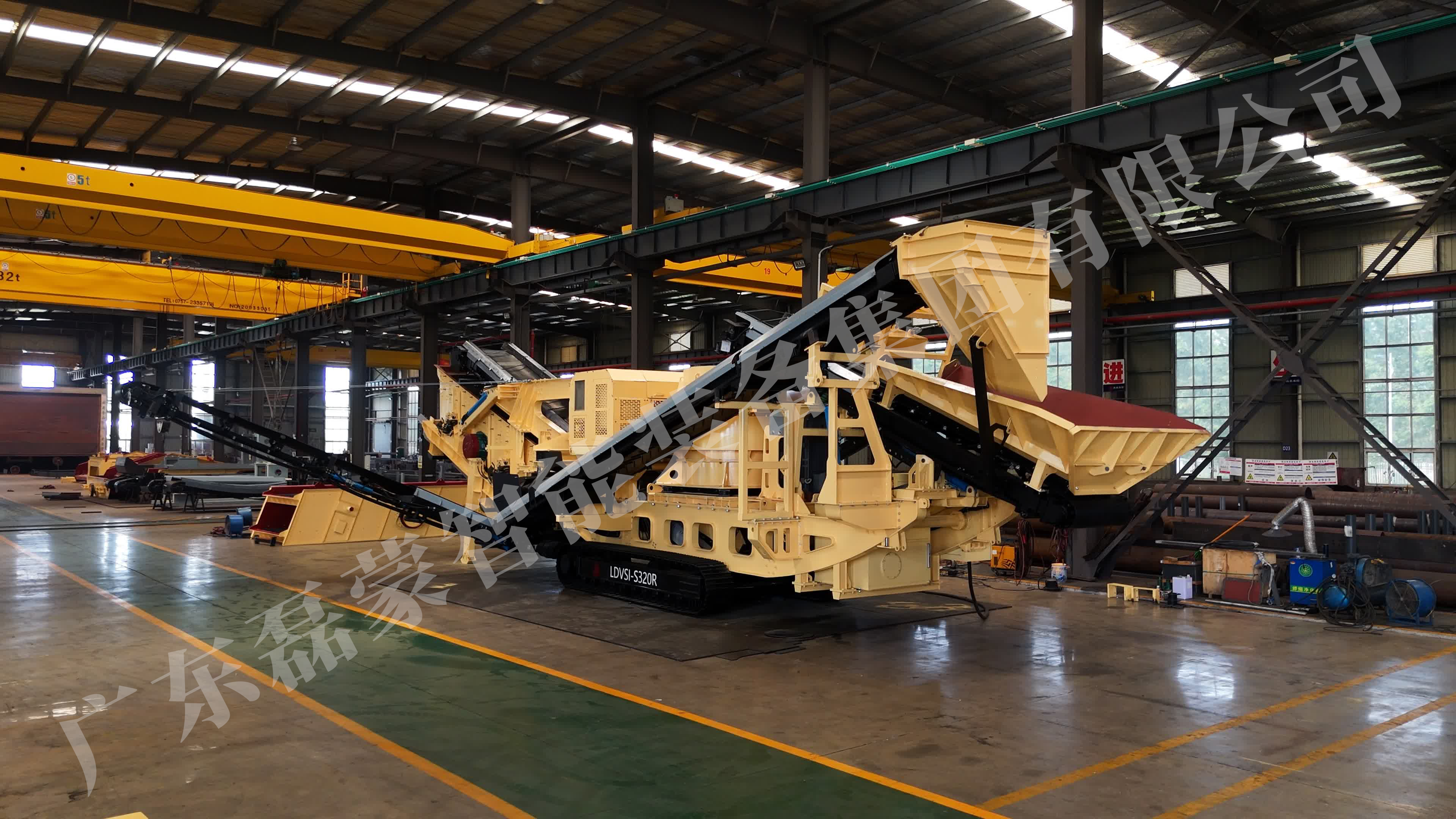

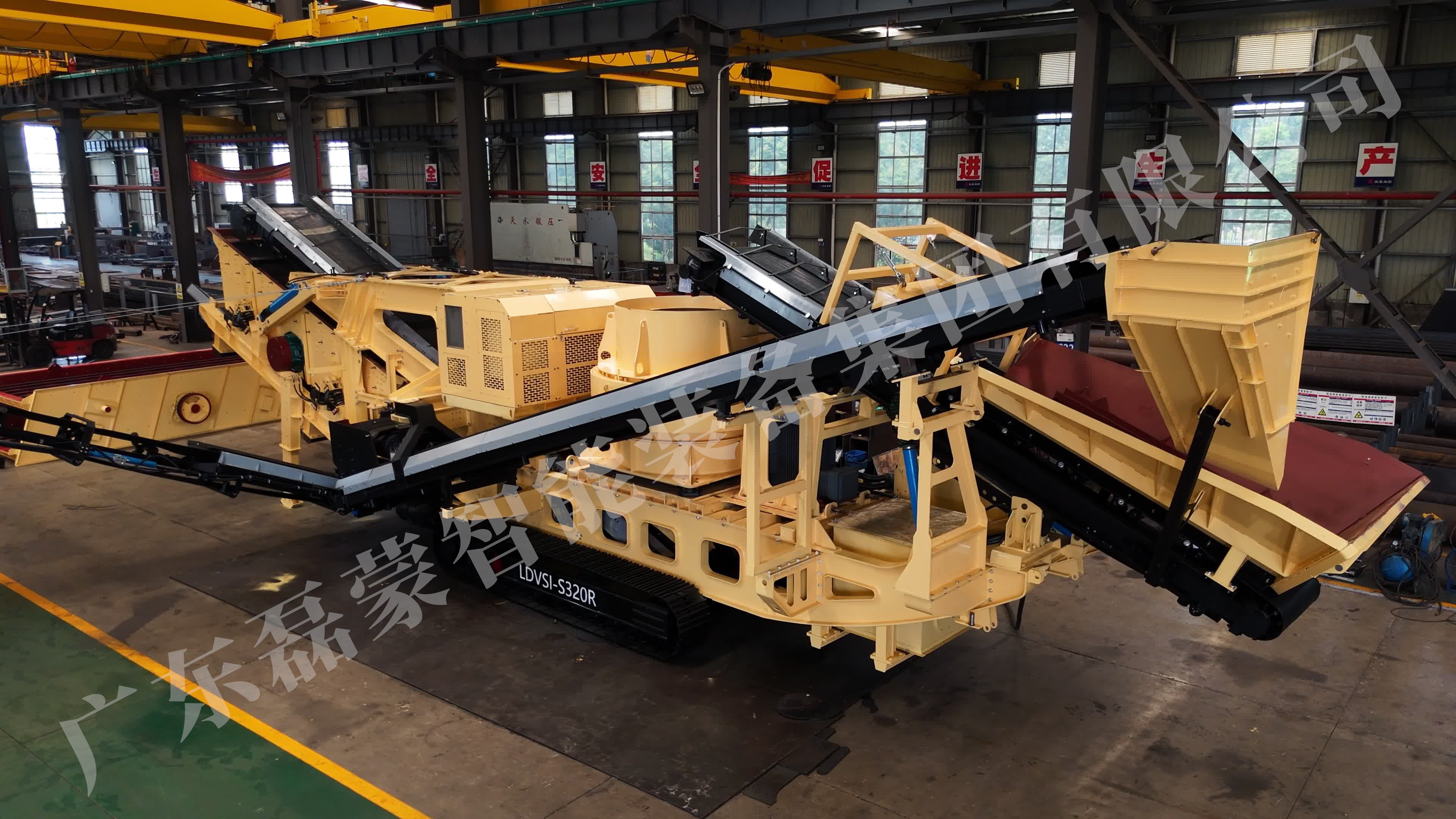

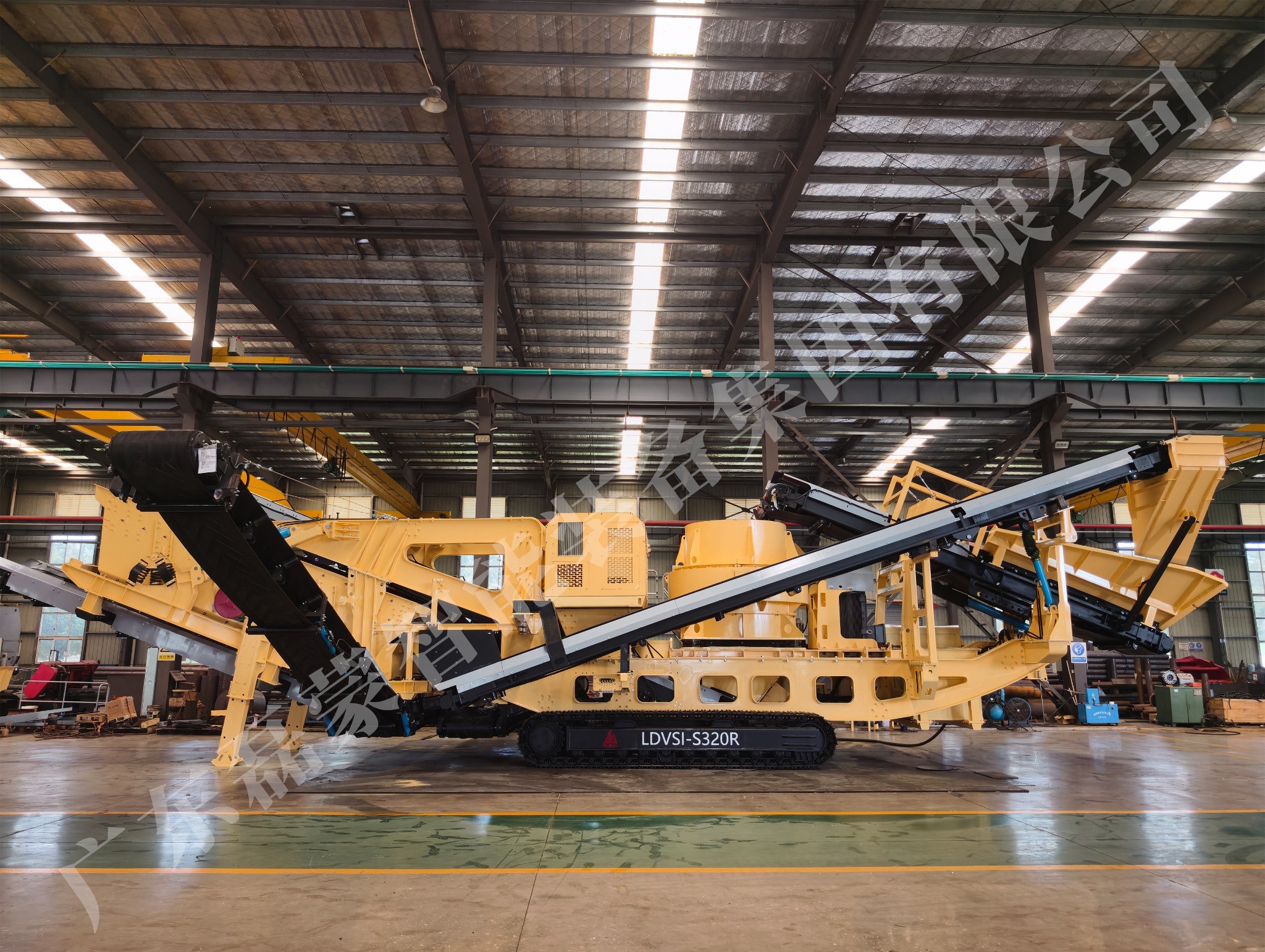

Leimeng Group has completed factory testing for a tracked mobile sand making machine that will be shipped to a Central Asia project site. The unit is equipped with a VSI320 impact sand maker, a tracked mobile chassis, a return screening module, and an intelligent control system. With a designed capacity of 100–150 t/h, the machine is built for manufactured sand production, aggregate shaping, and multi-size finished product output.
Why Mobile Sand Making Matters in Aggregate Projects
In a complete aggregate production process, sand making is usually arranged after primary and secondary crushing. The goal is not only to reduce particle size, but also to improve particle shape, control grading, and produce usable fine aggregate for concrete, road base, asphalt, or infrastructure construction.
A fixed sand-making plant is suitable for long-term quarry operation. However, not every project has the same site conditions. Some projects require fast deployment, shorter installation time, flexible relocation, or production close to the raw material source. In these cases, a tracked mobile sand making plant can reduce site preparation work and help the project enter production more quickly.

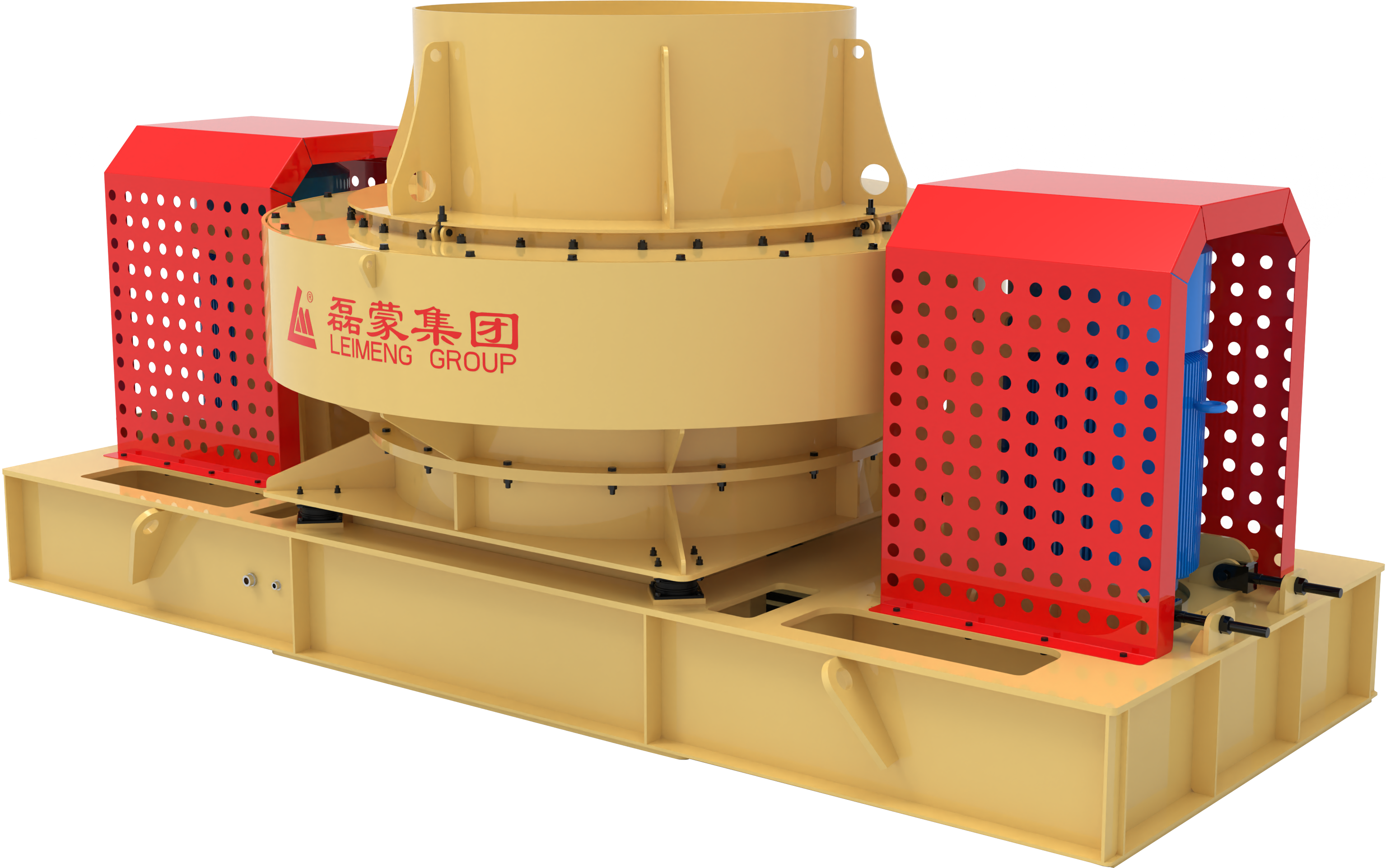

VSI320 Sand Making Core for Shaping and Fine Crushing
The core of this mobile unit is the VSI320 impact sand making machine. VSI (vertical shaft impact crushing) is commonly used in tertiary crushing, fine crushing, and shaping stages. Unlike compression crushing, VSI crushing uses high-speed impact force to break and shape material. This process helps improve the cubical shape of the final aggregate and increase the proportion of usable manufactured sand.
For suitable materials, the VSI sand maker can be used for both sand making and aggregate shaping. This is important for projects that need not only fine material, but also better particle shape for concrete and infrastructure applications.
100–150 t/h Capacity with Return Screening
This tracked mobile sand making machine is designed with a production capacity of 100–150 t/h. It also includes a return screening module, allowing oversized material to return to the crushing chamber for further processing. This closed-loop arrangement helps improve finished product control and supports more stable grading.
The machine can produce three finished product sizes at the same time, which is useful for clients who need multiple aggregate specifications from one mobile production unit. For quarry, mining, and construction material projects, this helps improve product flexibility and site operation efficiency.
Modular Design for Faster Transport and Installation
One of the key advantages of this machine is its modular layout. Each functional module is arranged in a compact and practical structure, which helps simplify transportation, assembly, and commissioning after the equipment reaches the site.
For overseas projects, installation efficiency matters. A shorter setup period means the client can reduce preparation time, lower installation cost, and start production earlier. Compared with a traditional fixed plant, a mobile sand making machine does not require complex foundation work, making it more suitable for temporary sites, staged mining areas, and projects with changing production locations.

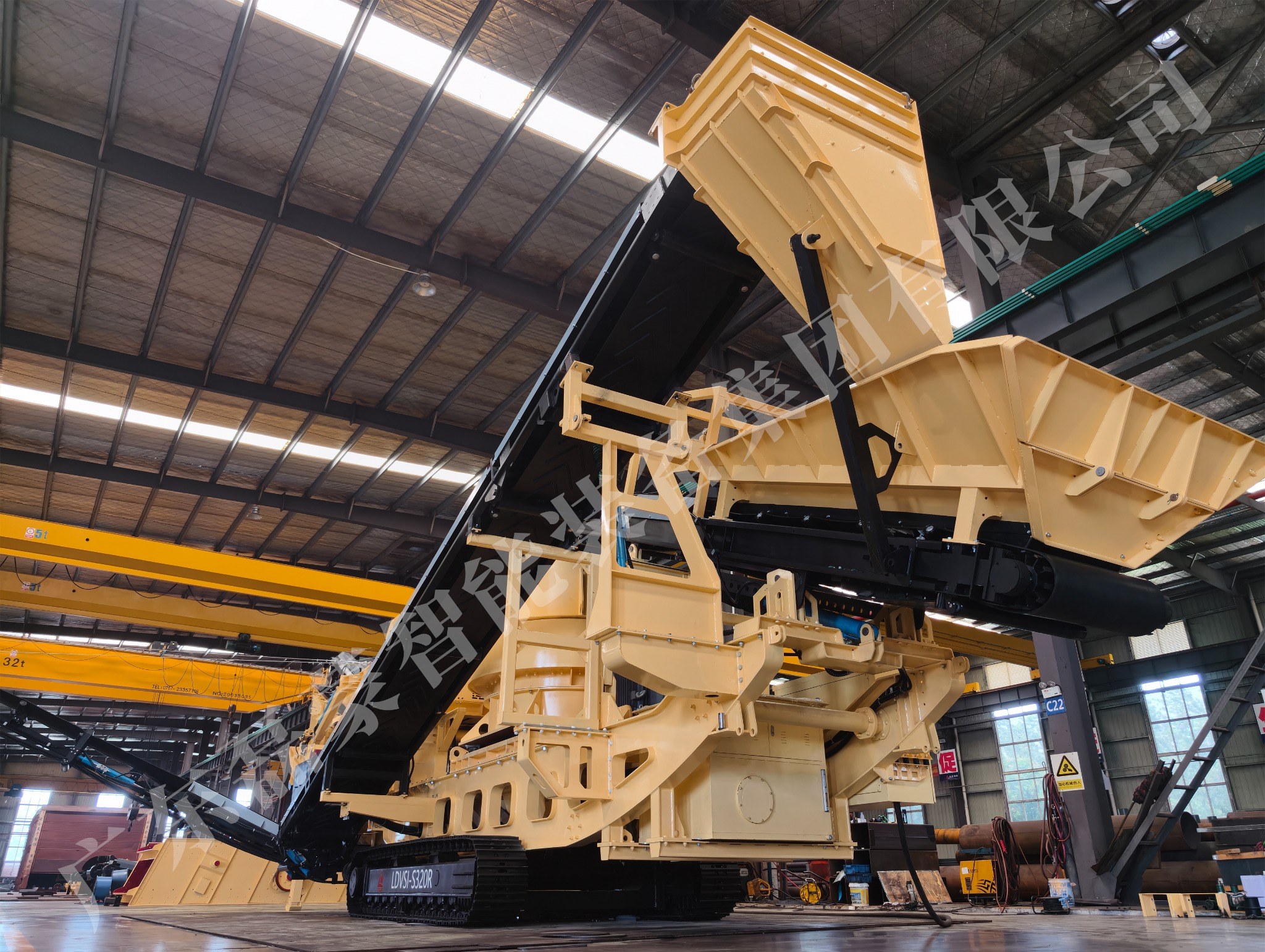

Tracked Chassis for Flexible Site Transfer
The tracked chassis gives the machine better mobility and site adaptability. It can move between working areas without complicated dismantling or foundation reconstruction. This is especially useful for mining projects, infrastructure construction, aggregate production, and construction waste recycling where the working face may change over time.
For clients operating across multiple sites, mobility can directly affect project efficiency. A machine that can be moved and restarted quickly helps reduce equipment idle time and supports continuous production planning.
Intelligent Control for Safer and Easier Operation
The machine is equipped with a PLC intelligent control system. Operators can use one-button start and stop, monitor operating status in real time, receive fault warnings, and adjust key parameters according to production conditions.
In daily operation, this helps reduce manual workload and improves the visibility of machine performance. Real-time monitoring also supports safer production management, especially for mobile crushing and sand-making projects where site conditions may change frequently.
Suitable Applications
This tracked mobile sand making machine can be used in several production scenarios:
Manufactured Sand Production
The VSI320 sand maker supports fine crushing and sand production after primary and secondary crushing. It is suitable for projects that need manufactured sand for concrete, road construction, and infrastructure materials.
Aggregate Shaping
For aggregate producers, particle shape affects the value and usability of finished products. VSI impact crushing can help improve cubical shape and reduce flaky particles in suitable applications.
Quarry and Mining Projects
The tracked chassis and modular structure make the machine suitable for quarry and mining sites that require flexible movement, staged production, or quick deployment.
Construction Waste Recycling
When used in construction waste processing, mobile sand-making and shaping equipment can support recycled aggregate production and reduce the need for long-distance material transport.
Suitable Materials for Mobile VSI Sand Making
This mobile VSI sand maker can be used for properly crushed limestone, river pebble, granite, basalt, dolomite and selected recycled aggregates. For hard and abrasive materials such as granite and basalt, the VSI sand maker is usually used after primary and secondary crushing, mainly for shaping and sand production. Final configuration should be based on material hardness, abrasiveness, feed size and final sand specification.

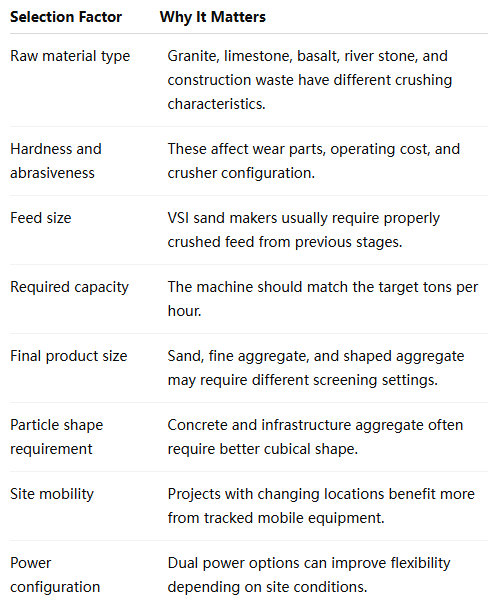

What to Check Before Choosing a Mobile Sand Making Machine
Choosing a mobile VSI sand maker should start with the material and project goal, not only the machine model. Before selecting equipment, clients should check the following factors:
Built for Efficient and More Sustainable Site Operation
Sustainable aggregate production is not only about environmental goals. In real site operation, it is closely related to energy use, transportation distance, wear parts, downtime, and production stability.
A tracked mobile sand making machine can help reduce repeated foundation work and make production closer to the raw material source. With suitable process design, return screening, and intelligent control, it can support stable output while helping clients manage operating cost more effectively.
The unit can also support dual power options according to configuration requirements, giving the project more flexibility in different site conditions.
Leimeng Mobile Sand Making Solution for Central Asia
The shipment of this tracked mobile sand making machine to Central Asia reflects Leimeng Group’s continued focus on mobile crushing, screening, and sand-making solutions for overseas projects.
For clients in mining, quarrying, aggregate production, and infrastructure construction, Leimeng can recommend suitable equipment based on raw material, capacity, feed size, finished product requirements, and site layout. From crushing and screening to sand making and shaping, the goal is to help clients build a practical production system with stable output, flexible operation, and long-term value.
FAQ
What is a tracked mobile sand making machine?
A tracked mobile sand making machine is a mobile production unit that combines a sand-making crusher, tracked chassis, screening system, and control system. It is used for manufactured sand production, aggregate shaping, and flexible site operation.
What is the capacity of this Leimeng mobile sand making machine?
This model is equipped with a VSI320 impact sand maker and has a designed capacity of 100–150 t/h.
Can it produce more than one finished product size?
Yes. The machine is designed with a return screening module and can produce three finished product sizes at the same time, depending on site configuration and screening settings.
What materials can be processed by a mobile VSI sand maker?
It can be used for suitable crushed stone, aggregate materials, and selected construction waste applications. Actual configuration should be based on material hardness, abrasiveness, feed size, and final product requirements.
Is a mobile sand making machine better than a fixed plant?
Not always. A fixed plant is suitable for long-term, high-volume production at one site. A mobile sand making machine is more suitable when the project needs fast deployment, flexible relocation, or production across multiple working areas.
Why is VSI crushing used for sand making?
VSI crushing uses high-speed impact force to reduce and shape material. It can improve particle shape and support manufactured sand production in suitable applications.
Is VSI suitable for hard rock sand making?
Yes, but the material should usually be processed by primary and secondary crushing first. For hard and abrasive rock such as granite or basalt, VSI crushing is commonly used for shaping and sand production after cone crushing.
What information is needed to choose a mobile sand making plant?
Key information includes raw material, feed size, required capacity, final product size, sand grading requirement, site layout, mobility needs and power conditions.
Get a Mobile Sand Making Solution for Your Project
To recommend a suitable mobile sand making solution, Leimeng Group usually needs to know the raw material, feed size, required capacity, final sand size, particle shape requirement, site layout and mobility needs. Share your project details with our team, and we can help configure a practical crushing, screening and sand-making solution.
Conclusion
For modern aggregate and mining projects, sand making equipment needs to do more than produce fine material. It should support stable grading, better particle shape, easier maintenance, flexible movement, and practical site operation.
Leimeng Group’s tracked mobile sand making machine, equipped with a VSI320 sand maker, return screening module, and intelligent control system, provides a 100–150 t/h mobile solution for manufactured sand, aggregate shaping, and multi-size finished product production. For clients in Central Asia and other overseas markets, it offers a flexible option for building efficient and adaptable sand-making operations.
