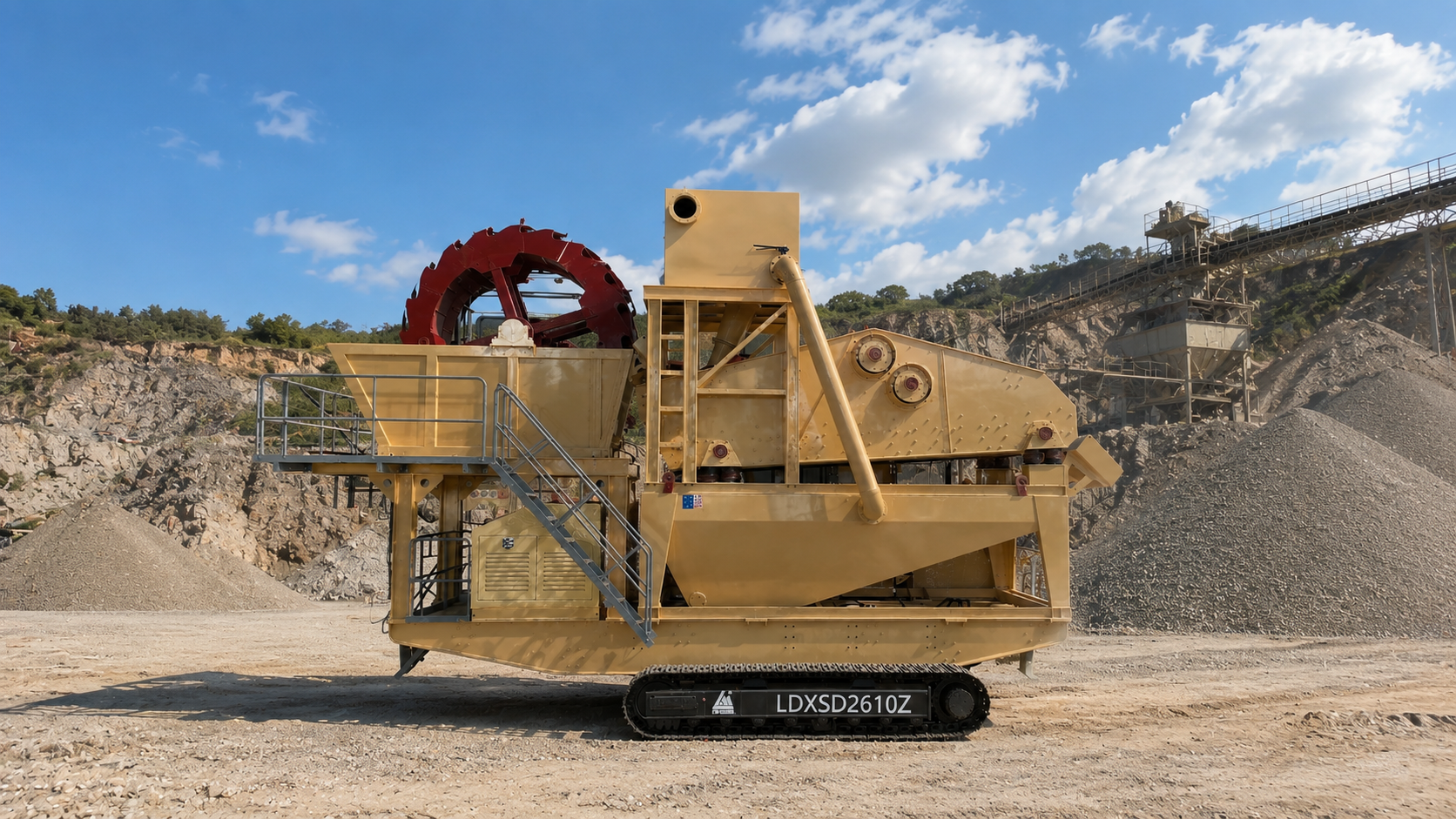

Track-Mounted Mobile Sand Washing Plant with Fine Sand Recovery
For many manufactured sand and aggregate projects, the challenge is not only crushing rock into sand. The final washing and recovery stage also affects sand cleanliness, fine sand loss, site layout and project installation time.
Leimeng Group’s track-mounted mobile sand washing plant is designed for projects that need cleaner sand, fine sand recovery, compact equipment layout and flexible relocation. The unit integrates a bucket wheel sand washer and a fine sand recovery system on one tracked chassis, making it suitable for small and medium-sized sand plants, mobile crushing sites, temporary projects and space-limited quarry operations.
Instead of arranging a separate sand washer, recovery system, conveyors and supporting structures, this equipment turns the rear-end washing and recovery process into one movable production module.
Why Sand Washing and Fine Sand Recovery Matter
Sand demand continues to grow with infrastructure, concrete and aggregate production. According to the United Nations Environment Programme, the world uses around 50 billion tonnes of sand and gravel every year, and sand use for buildings alone is projected to rise by up to 45% by 2060.
For concrete applications, aggregate quality is also important. The American Cement Association notes that aggregates usually make up 60% to 75% of the total volume of concrete, so grading, cleanliness and particle quality directly affect downstream performance.
For manufactured sand producers, this means the washing stage cannot be treated as a simple accessory process. A suitable sand washing and fine sand recovery system can help remove impurities, reduce usable fine sand loss and support more stable final sand gradation.

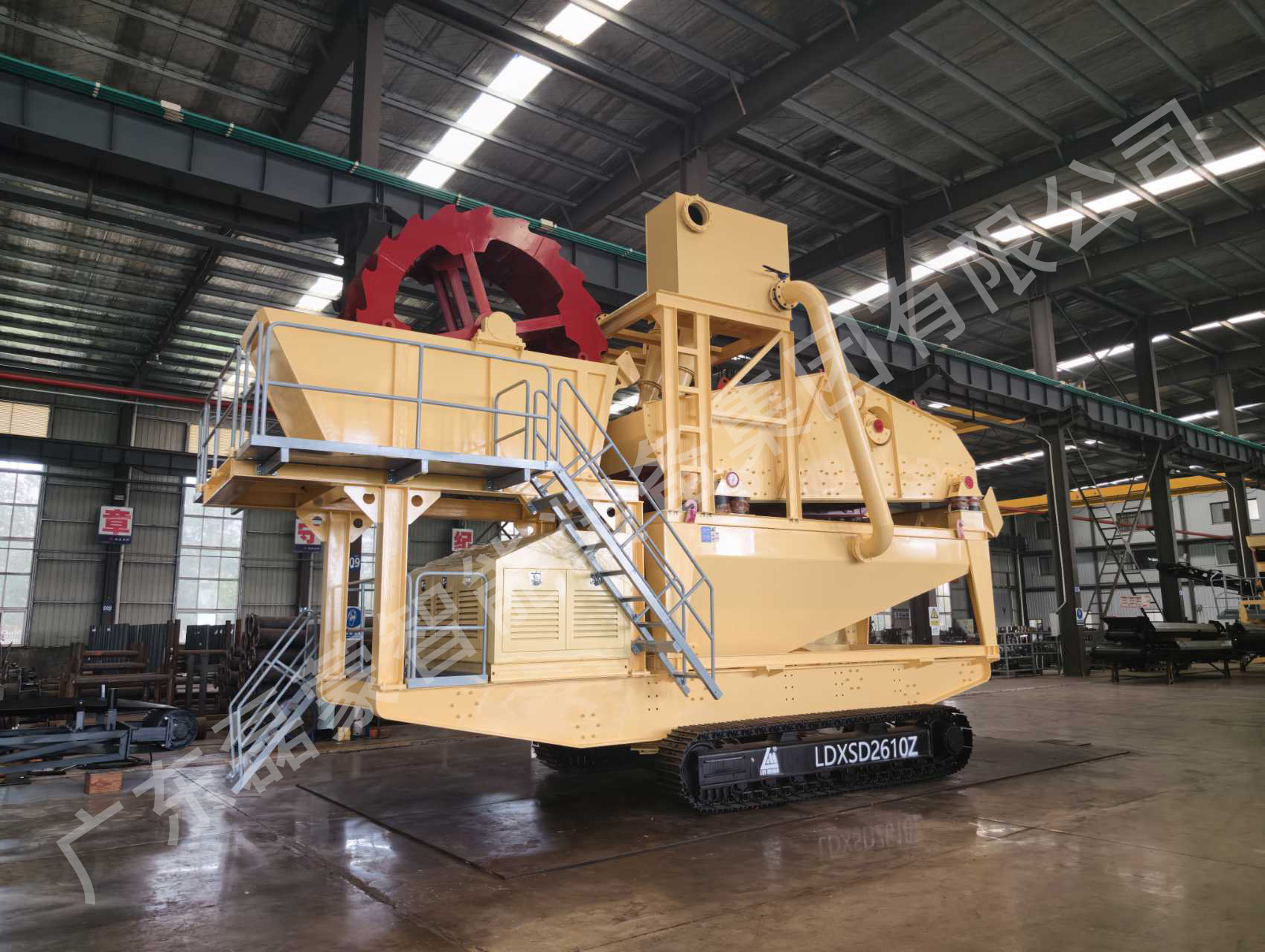

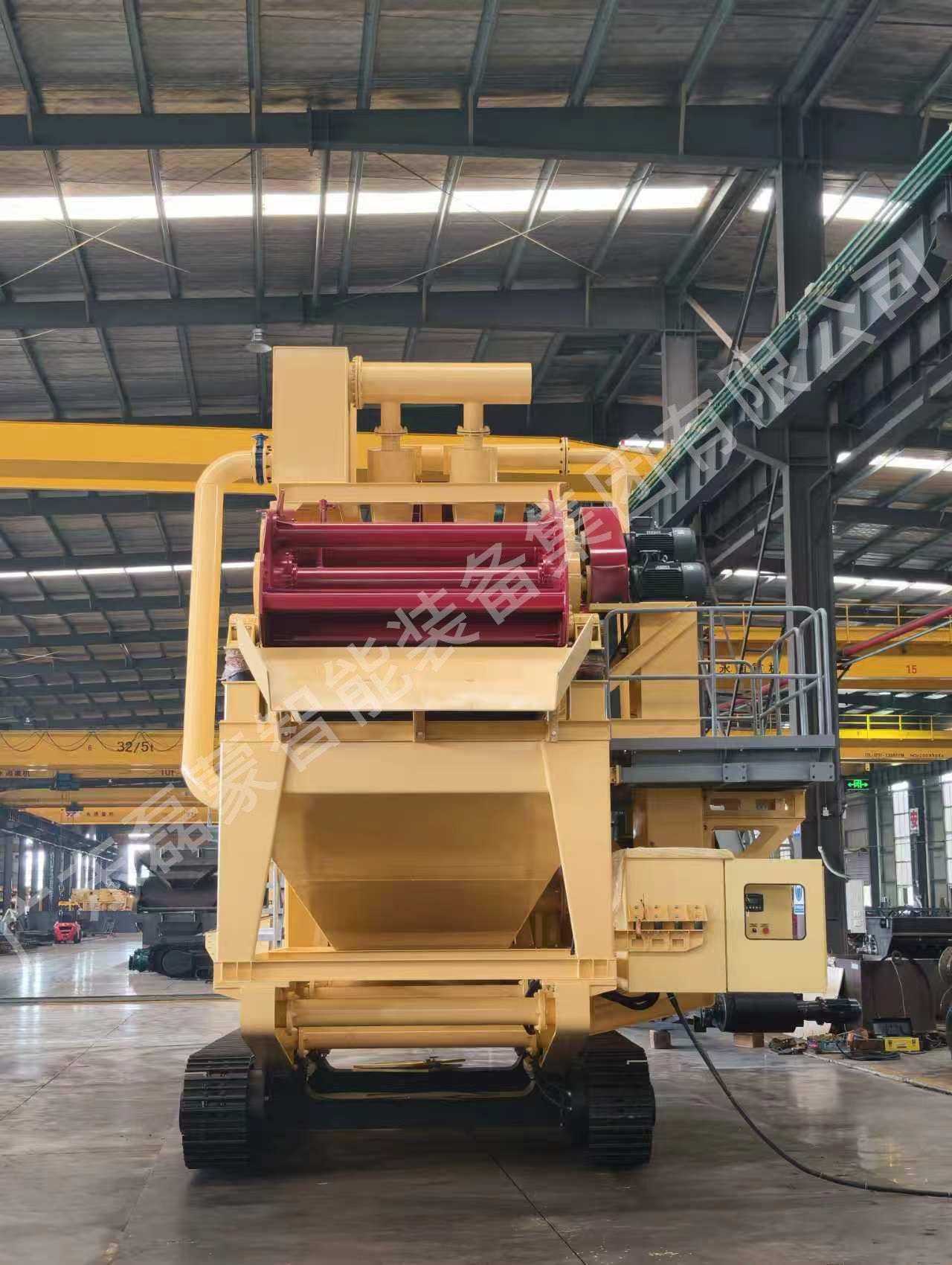

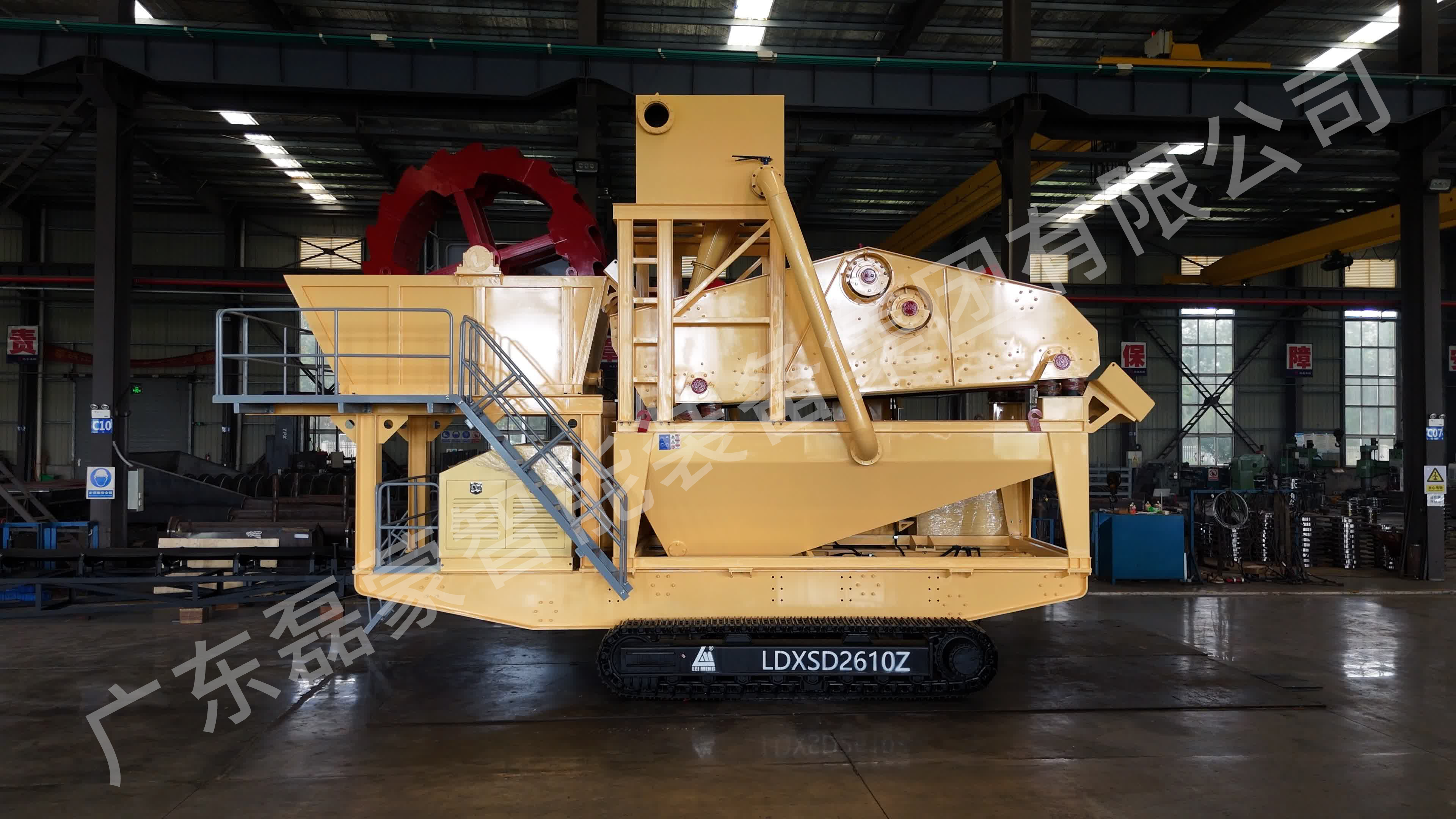

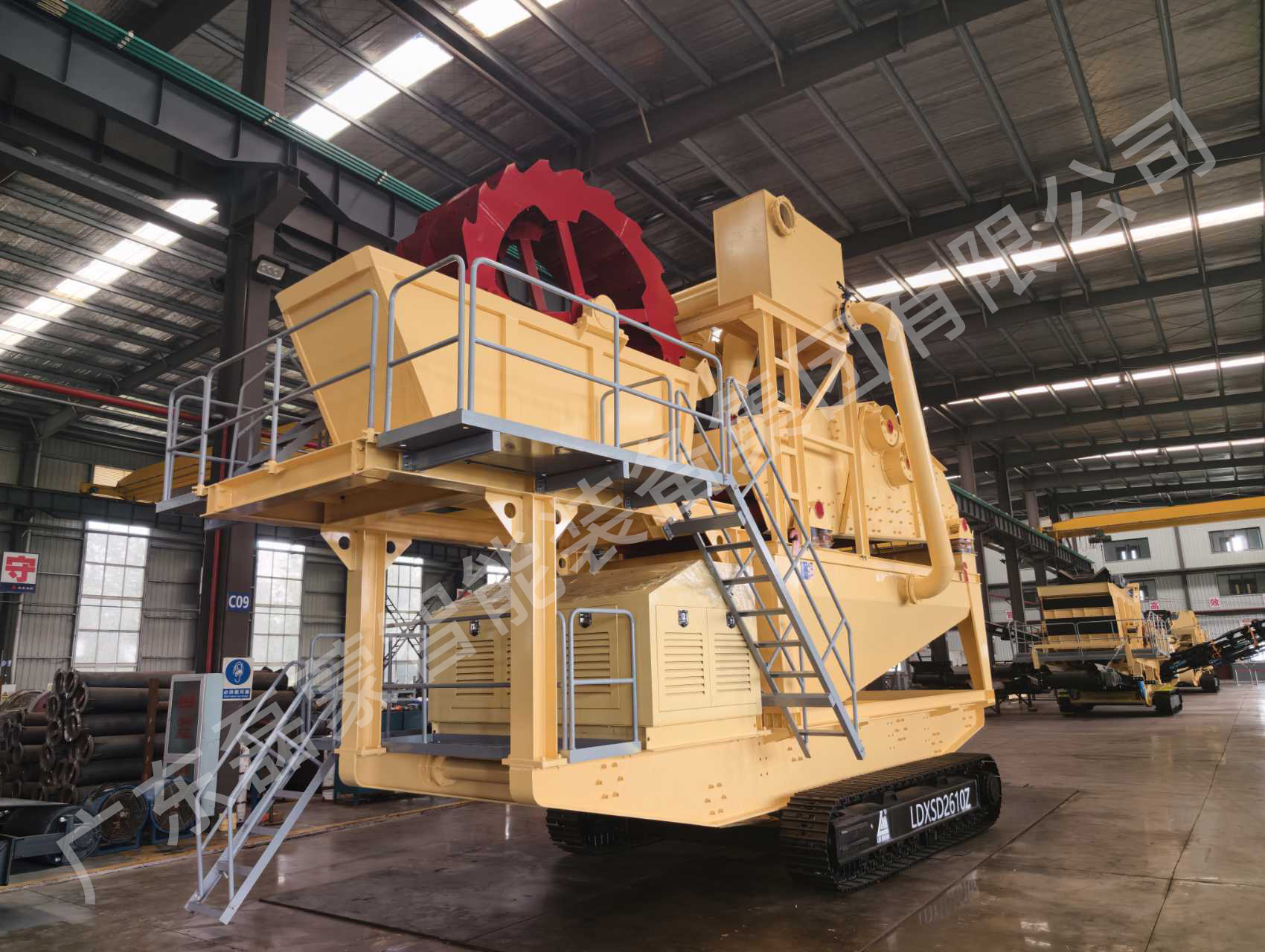

Product Overview: Leimeng Track-Mounted Mobile Sand Washing Plant
Leimeng’s track-mounted mobile sand washing plant combines three key functions in one unit:
- sand washing
- fine sand recovery
- tracked mobility
The equipment is mainly used after crushing, sand-making and screening. It helps clean the sand, recover usable fine particles and simplify the site layout for projects where a traditional fixed sand washing system may require more space, more foundation work or more installation time.
It is especially suitable for manufactured sand production, aggregate washing, mobile crushing and screening projects, and existing plant upgrades where fine sand loss needs to be reduced.
Key Advantages of the Leimeng Mobile Sand Washing Plant
Integrated Sand Washing and Fine Sand Recovery
The unit combines sand washing and fine sand recovery in one compact machine. This helps reduce separate equipment layout and makes the rear-end process easier to arrange on site.
Tracked Chassis for Flexible Relocation
The whole unit is installed on a tracked chassis. When the working area changes, the equipment can be moved as one module, reducing repeated dismantling and reinstallation.
Compact Layout for Limited Sites
For small and medium-sized manufactured sand plants, site space is often limited. The integrated structure helps reduce the footprint compared with a traditional fixed washing system.
Faster Setup
Because the washing and recovery functions are already integrated, the equipment can reduce on-site connection work. This is useful for projects that need faster installation, temporary production or staged operation.
Fine Sand Recovery for Better Material Utilization
During traditional sand washing, part of the fine sand may be carried away with the water flow. The fine sand recovery system helps recover usable fine particles and reduce unnecessary material loss.
Easy Connection with Crushing and Screening Equipment
The unit can work with front-end equipment such as jaw crushers, cone crushers, impact crushers, VSI sand makers, vibrating screens and mobile crushing plants.
How It Works in a Sand Production Line
A typical manufactured sand production process includes:
Feeding → Primary Crushing → Secondary Crushing → Sand Making → Screening → Sand Washing → Fine Sand Recovery
The Leimeng track-mounted mobile sand washing plant is mainly used in the final washing and recovery stage.
First, the bucket wheel sand washer washes the sand and helps remove mud, clay and impurities. Then, the fine sand recovery system recovers usable fine particles from the water flow. Finally, the processed sand can be discharged for stockpiling or further handling.
Depending on the project requirements, the washing process can also be combined with water recycling or wastewater treatment equipment. These systems should be configured separately according to site conditions.

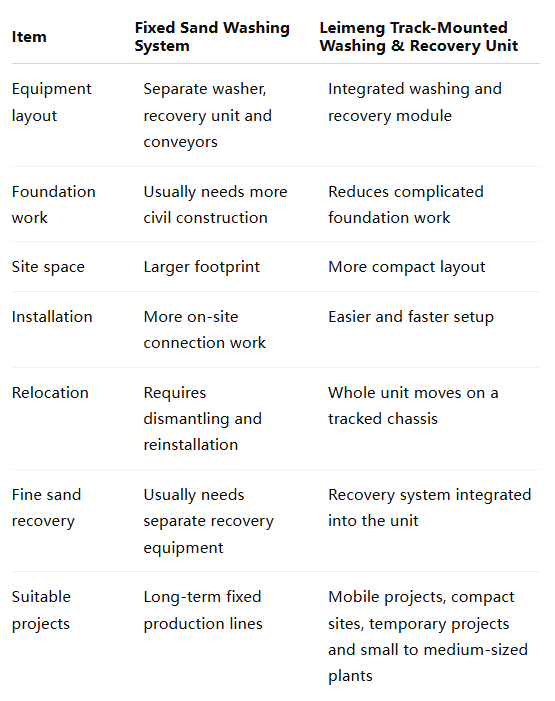

Track-Mounted Mobile Sand Washing Plant vs. Fixed Sand Washing System
A fixed washing system is still suitable for large, long-term production lines. However, when a project needs flexible movement, fast setup or a compact layout, a track-mounted mobile sand washing plant is often more practical.
Suitable Applications
Small and Medium-Sized Manufactured Sand Plants
For plants that do not require a large fixed washing system, the integrated mobile unit can reduce site work and simplify production preparation.
Mobile Crushing and Sand-Making Projects
When mobile crushing and screening equipment is already used on site, a mobile sand washing unit can complete the rear-end washing and recovery process.
Space-Limited Quarry and Aggregate Sites
Some quarry and aggregate projects do not have enough space for a large fixed washing line. A compact track-mounted unit can make the site layout more practical.
Temporary or Staged Production Sites
For short-term construction projects, road material processing or staged aggregate production, tracked mobility can reduce repeated installation work.
Existing Plant Upgrade
The unit can also be used as a supplementary washing and fine sand recovery module for an existing production line.
Which Projects Are Better Suited for This Solution?
This track-mounted mobile sand washing plant is suitable for clients who need:
- a compact sand washing solution
- faster installation
- flexible relocation
- lower fine sand loss
- mobile crushing and screening support
- less civil foundation work
- a supplementary washing module for an existing plant
- rear-end processing for small or medium-sized manufactured sand projects
It is not always necessary to build a large fixed washing line. For many projects, the better choice is a practical system that matches the site, material, capacity and final sand requirements.
How to Choose the Right Track-Mounted Mobile Sand Washing Plant
Before choosing a mobile sand washing plant, the project should be evaluated from the production process, not only from the equipment name.
1. Raw Material Type
Different materials have different mud content, fines content and washing difficulty. Crushed granite, basalt, limestone, river pebble and other manufactured sand materials may require different front-end crushing and screening configurations.
2. Feed Size
The feed size should match the washing and recovery equipment. Oversized material may reduce washing efficiency and increase equipment wear.
3. Required Capacity
The required tons per hour will determine whether a mobile washing unit is enough or whether a larger fixed washing system is more suitable.
4. Final Sand Specification
If the final sand is used for concrete, mortar, asphalt or road aggregate, sand gradation, cleanliness and moisture level should be considered before selecting the washing process.
5. Fine Sand Loss
If fine sand is being lost during washing, a fine sand recovery system can help recover usable particles and improve material utilization.
6. Water Conditions
Water availability, water recycling requirements and wastewater treatment conditions should be considered when designing the washing process.
7. Site Layout
For compact sites or projects with limited civil construction conditions, a track-mounted washing and recovery unit can reduce foundation work and simplify installation.
8. Relocation Requirement
If the equipment needs to move between different working areas, tracked equipment is more flexible than a fixed installation.

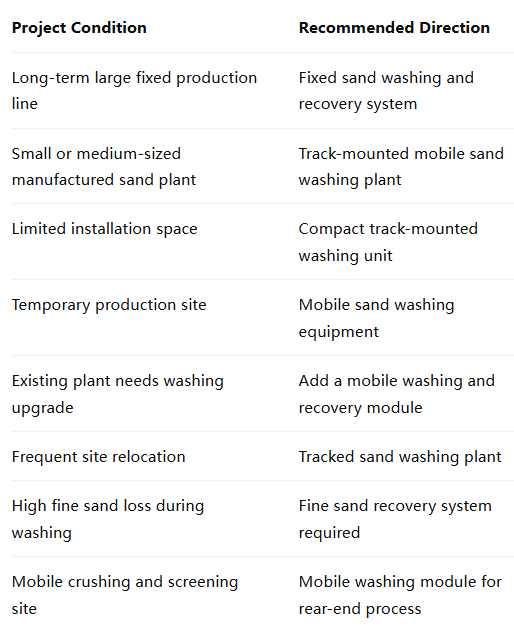

Selection Guide: Which Sand Washing Solution Fits Your Project?
The best solution is not always the largest system. A suitable sand washing solution should match the raw material, capacity, final product requirements and site conditions.
What Information Should Clients Provide?
To recommend a suitable mobile sand washing plant, Leimeng usually needs the following information:
- raw material type
- feed size
- required capacity per hour
- final sand size or specification
- mud content or clay content
- fine sand content
- water availability
- site size and layout
- whether relocation is required
- whether the full production line is fixed, wheeled mobile or tracked mobile
With this information, the engineering team can help decide whether the project needs a track-mounted mobile sand washing plant, a fixed washing line or a complete crushing, screening, washing and recovery solution.
Why Choose Leimeng Group
Leimeng Group provides crushing, screening, sand-making and washing equipment for quarry, mining and aggregate production projects. For manufactured sand projects, Leimeng can help clients configure a complete process from raw material crushing to final sand washing and fine sand recovery.
The Leimeng track-mounted mobile sand washing and fine sand recovery plant is especially suitable for clients who need compact layout, faster setup, flexible relocation and better fine sand utilization.
With experience in complete crushing, screening, sand-making and washing lines, Leimeng Group can help clients evaluate the full process instead of selecting each machine separately.
Leimeng does not only provide a sand washer. Based on the client’s material, capacity, final product requirements and site conditions, the team can recommend a practical washing and recovery solution for stable operation and better material use.
FAQ
What is a track-mounted mobile sand washing plant?
A track-mounted mobile sand washing plant is a movable washing unit installed on a tracked chassis. It is used to wash manufactured sand or aggregate and is suitable for projects that need flexible layout, faster setup or equipment relocation.
What is fine sand recovery?
Fine sand recovery is the process of recovering usable fine particles that may be lost during sand washing. It helps improve fine sand utilization and final product gradation.
Why combine sand washing and fine sand recovery?
Combining both functions reduces equipment footprint, simplifies site layout and helps improve the use of fine sand in the final product.
What capacity can the track-mounted mobile sand washing plant handle?
Capacity depends on feed material, sand content, mud content, water conditions and equipment configuration. Leimeng can recommend a suitable model after checking the required tons per hour and final sand specification.
Is a track-mounted mobile sand washing plant suitable for large fixed plants?
It depends on the project. Large long-term plants may still use fixed washing systems, while track-mounted units are more suitable for flexible, compact or staged production.
What materials can be processed?
It can be used for manufactured sand and aggregate materials after crushing and screening, such as crushed granite, basalt, limestone and river pebble. The actual configuration should be selected according to material hardness, mud content, fines content and final sand requirements.
Can it work with a mobile crushing plant?
Yes. It can be connected with mobile crushing and screening equipment as the washing and fine sand recovery stage of a mobile production line.
How do I choose between fixed and mobile sand washing equipment?
If the project is long-term and has enough space, a fixed system may be suitable. If the project needs faster setup, compact layout or relocation, a mobile sand washing plant may be more practical.
Does fine sand recovery reduce material loss?
Yes. A fine sand recovery system helps recover usable fine particles that may otherwise be carried away with the washing water, supporting better material utilization and more stable grading.
What information is needed before getting a solution?
Clients usually need to provide raw material, feed size, capacity, final sand specification, mud content, water conditions, site layout and relocation requirements.
