GC Series Primary Jaw Crusher for Hard Rock Quarry and Mining Plants

In a quarry, aggregate plant or metal mining project, primary crushing is where the whole production process begins. If the first crusher cannot handle large feed material steadily, the downstream cone crusher, impact crusher, vibrating screen and sand-making equipment will all be affected.

That is why a primary jaw crusher is not only a machine for breaking stone. It is the first control point for plant capacity, feed stability, wear cost and long-term production reliability.

The Leimeng GC Series high-performance jaw crusher is designed for primary crushing in hard rock and mining applications. With a compound pendulum crushing principle, an optimized motion structure, a deep crushing chamber and a high-strength frame, the GC Series is built to support stable coarse crushing in large aggregate and mining projects.

According to the United Nations, 68% of the world’s population is projected to live in urban areas by 2050, which will continue to drive demand for roads, housing, industrial parks, bridges and other infrastructure. Crushed stone is also described by the U.S. Geological Survey as a major basic raw material for construction, agriculture and other industries, and as an indicator of economic activity. For aggregate producers, this means crushing plants must deliver more than capacity alone. They need stable operation, easier maintenance and a lower cost per ton.

What Is a Primary Jaw Crusher?

A primary jaw crusher is used in the first crushing stage to reduce large rocks or ores into smaller sizes that can be processed by secondary crushing equipment.

The working principle is simple but powerful. Material enters the crushing chamber from the top. A moving jaw plate pushes the material against a fixed jaw plate. As the chamber narrows, the rock is compressed and broken. When the crushed material reaches the required discharge size, it leaves the crusher from the bottom.

This compression crushing method makes jaw crushers especially suitable for hard and abrasive materials, such as:

1. Granite
2. Basalt
3. River pebble
4. Iron ore
5. Copper ore
6. Dolomite
7. Limestone
8. Cement raw materials

For many hard rock aggregate plants, a typical process is:

Vibrating feeder → Primary jaw crusher → Cone crusher → Vibrating screen → Sand making or final aggregate stockpiling

In this system, the jaw crusher controls the first step. A stable primary crushing stage helps reduce pressure on the secondary crusher and improves the balance of the whole production line.

Why Primary Crushing Matters

The primary crusher affects the entire crushing and screening circuit. If the feed opening is too small, oversized rocks may block the crusher. If capacity is not matched with the plant design, downstream equipment may operate under unstable load. If the frame and motion structure are not strong enough, long working hours can lead to higher vibration, faster wear and more maintenance pressure.

In a well-designed aggregate plant, primary crushing should help achieve three goals:

1. Reduce large feed material to a manageable size
2. Large stone or ore must be reduced before secondary crushing.
3. Keep downstream equipment feeding stable
4. Cone crushers, impact crushers and screens work better when the feed size is controlled.
5. Lower the overall cost per ton
6. Stable crushing, easier maintenance and longer wear part life all contribute to lower operating cost.

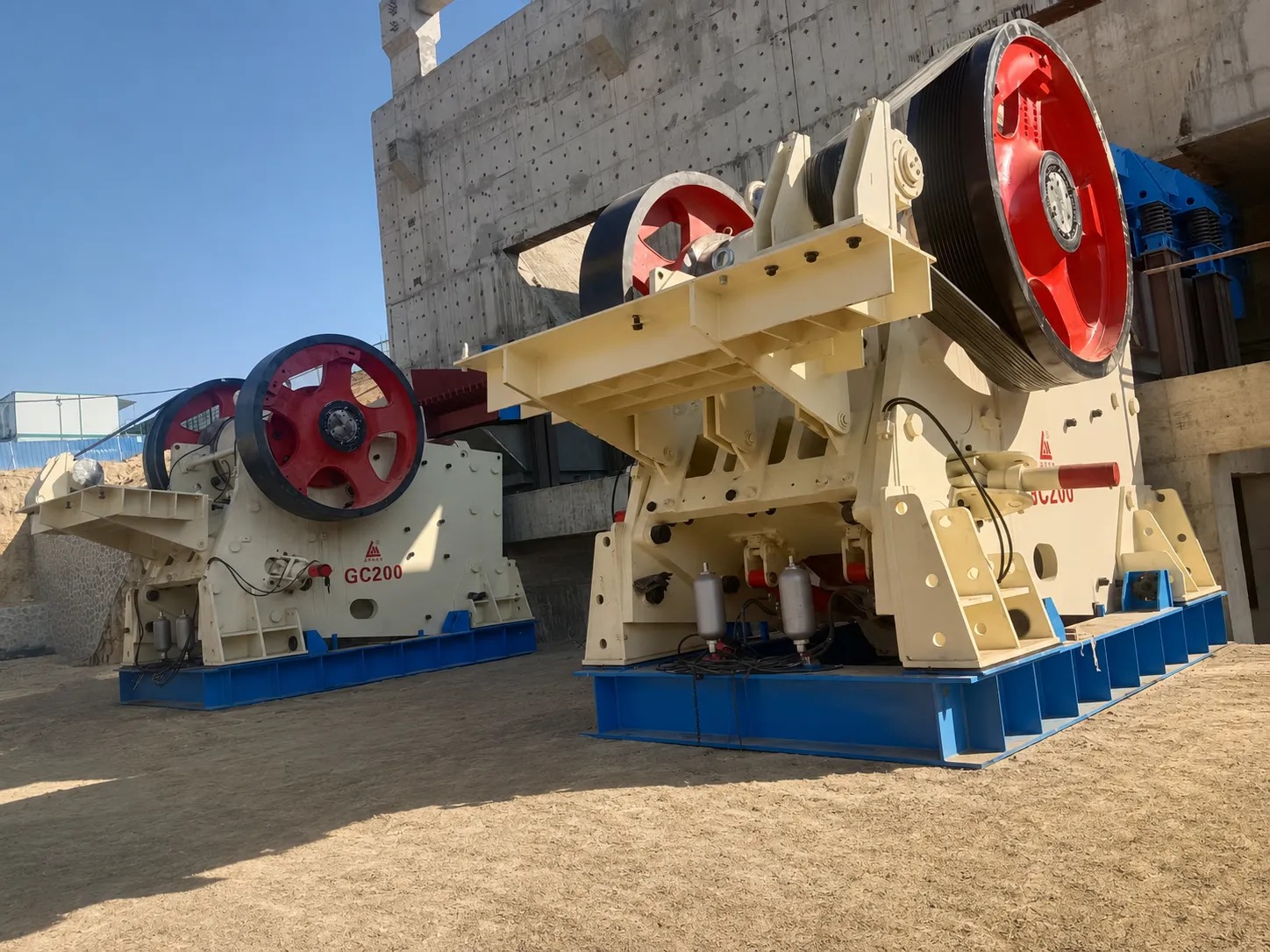

GC Series Jaw Crusher: Designed for High-Capacity Coarse Crushing

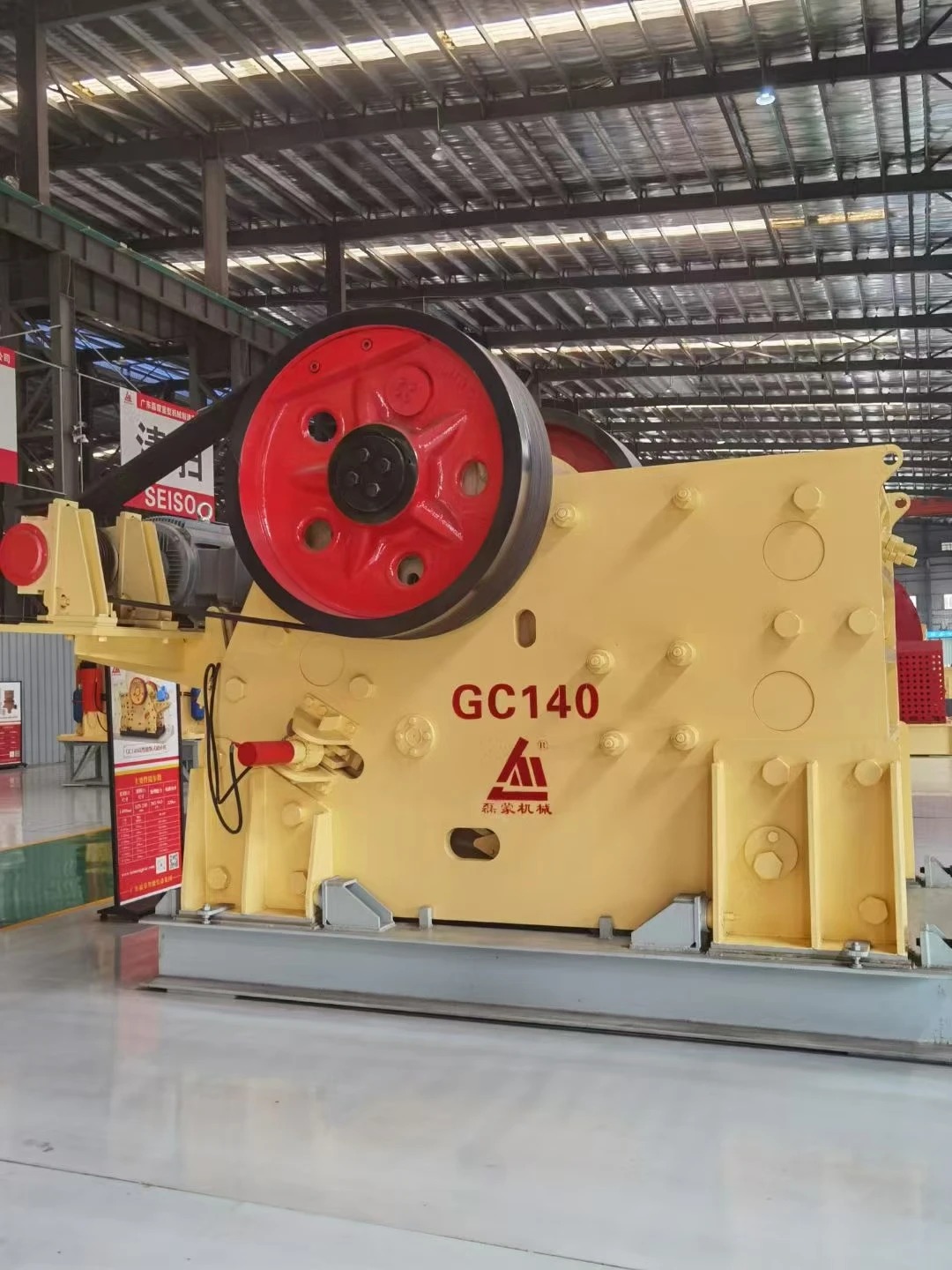

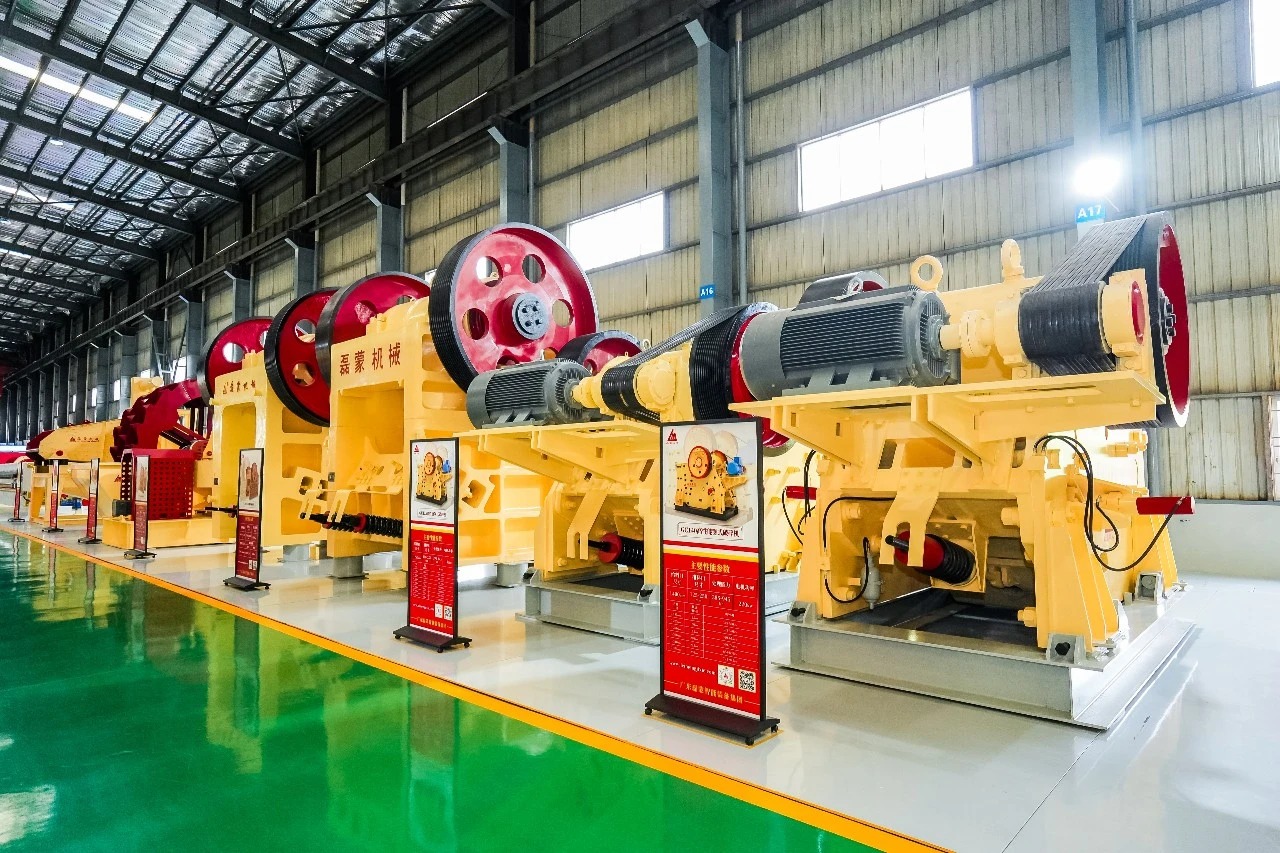

The Leimeng GC Series jaw crusher covers a wide range of models, including:

GC80, GC96, GC106, GC110, GC125, GC140, GC150, GC160 and GC200

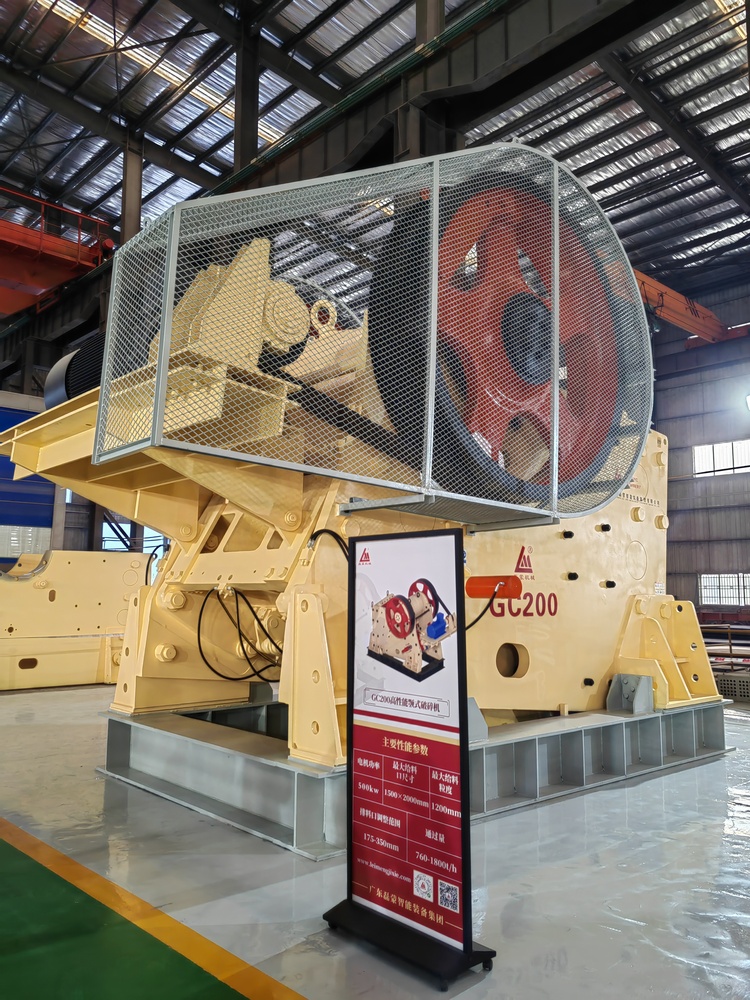

The largest model supports a feed opening of up to 2000×1500 mm, with single-machine capacity reaching up to 2,000 t/h, depending on material type, feed size and site conditions. This makes the series suitable for both new large-scale production lines and capacity expansion projects.

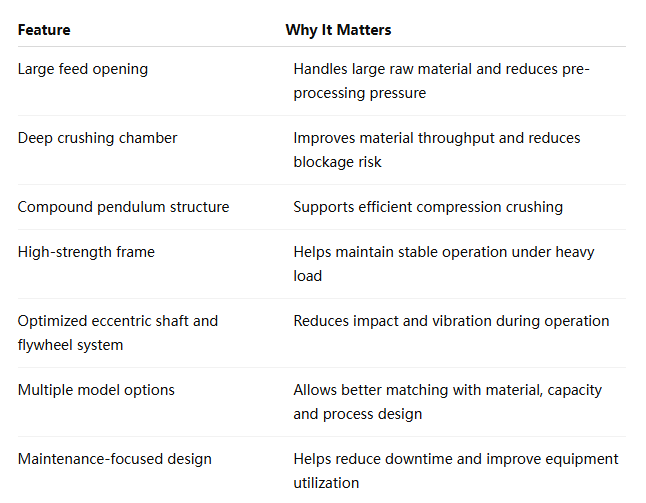

Key Technical Highlights

Suitable Materials and Applications

The GC Series primary jaw crusher can be used in both aggregate production and metal mining projects.

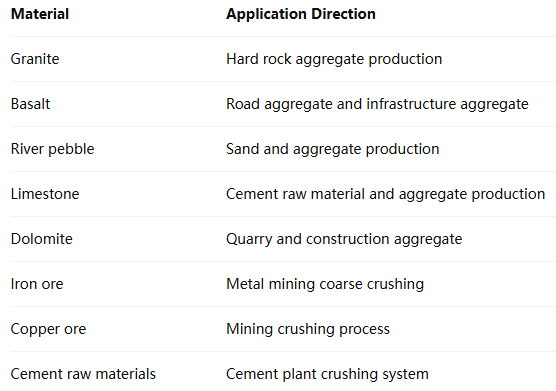

Common Materials

Common Project Types

1. Quarry aggregate production lines
2. Granite and basalt crushing plants
3. Limestone and dolomite mines
4. River pebble processing lines
5. Iron ore and copper ore mining projects
6. Cement raw material crushing systems
7. Highway, railway and water conservancy aggregate projects

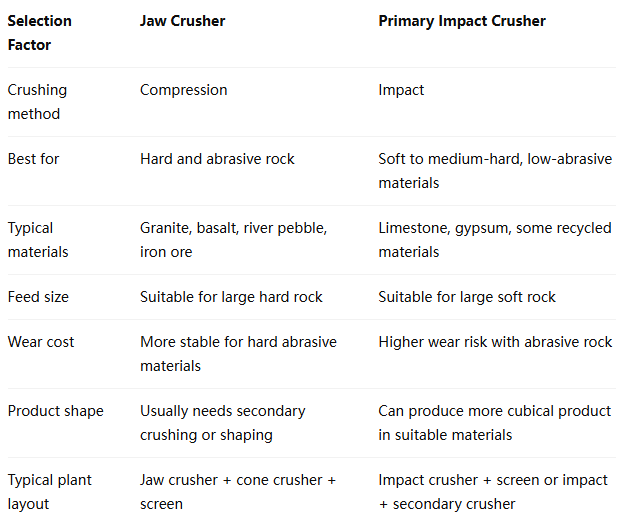

Jaw Crusher or Impact Crusher for Primary Crushing?

One useful way to choose a primary crusher is to start with the material, not the machine. The hardness, abrasiveness, feed size, moisture content and final product requirement will decide the best crushing configuration.

For hard rock such as granite, basalt and river pebble, a jaw crusher is usually the safer primary crushing choice. For softer and lower-abrasive material such as limestone, a primary impact crusher may also be considered, depending on the final aggregate shape and wear cost expectations. For limestone projects, the final choice between jaw crusher and impact crusher should depend on feed size, abrasiveness, required product shape and operating cost.

This is why Leimeng recommends equipment selection based on the full process, not on a single machine.

How to Choose the Right GC Jaw Crusher Model

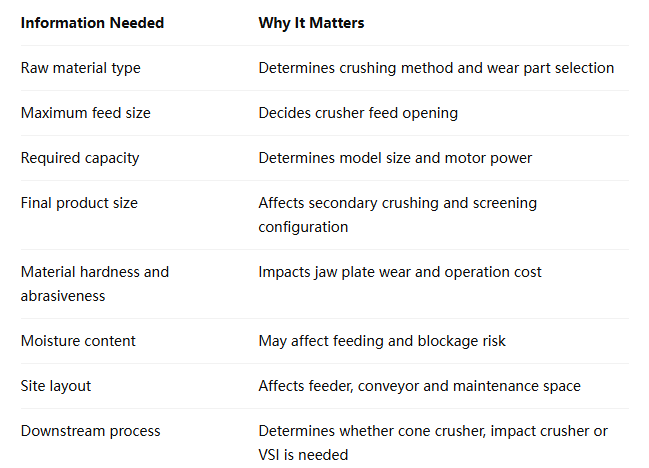

To choose the right primary jaw crusher, the following information should be confirmed before configuration:

For example, a hard rock aggregate plant may use:

Vibrating feeder + GC jaw crusher + multi-cylinder cone crusher + vibrating screen

A limestone aggregate plant may use:

Vibrating feeder + jaw crusher or impact crusher + vibrating screen

A manufactured sand line may use:

Jaw crusher + cone crusher + VSI sand maker + vibrating screen + sand washing system

Maintenance and Life-Cycle Cost

For quarry and mining operators, downtime is not just a maintenance issue. It directly affects daily output and project profitability.

A primary jaw crusher should therefore be evaluated not only by purchase price, but also by:

1. Jaw plate replacement convenience
2. Lubrication access
3. Inspection space
4. Frame strength
5. Bearing and shaft reliability
6. Wear part life
7. Downtime during maintenance
8. Long-term cost per ton

The GC Series considers on-site maintenance needs in its design, including wear part replacement, lubrication and inspection space. Easier maintenance helps shorten service time and improve equipment utilization.

From a production point of view, this is important because a primary crusher usually sits at the beginning of the line. Once it stops, the whole crushing and screening plant may stop.

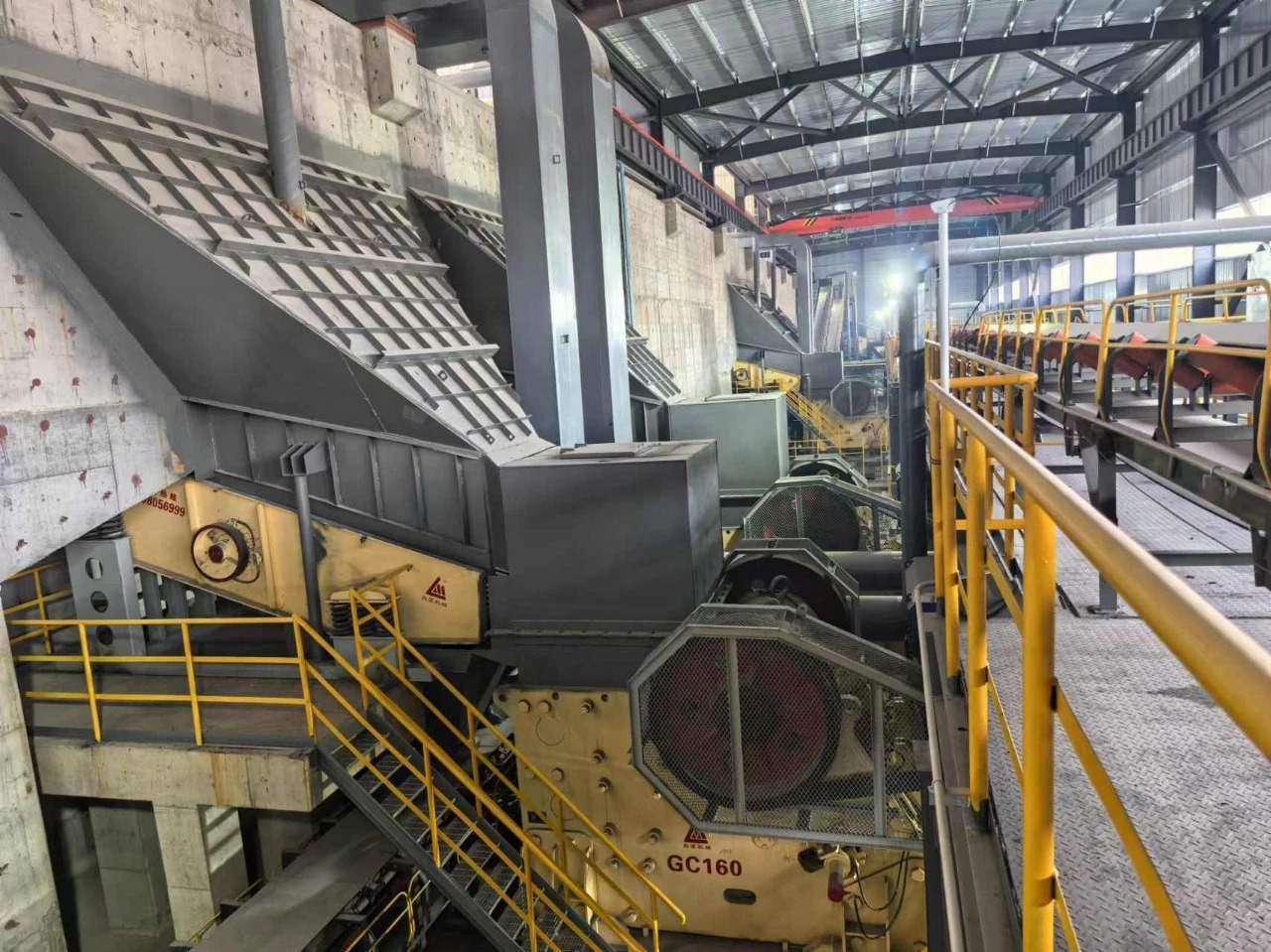

Primary Jaw Crusher in a Complete Crushing and Screening System

A high-performance jaw crusher becomes more valuable when it is matched with the right downstream equipment.

Leimeng can configure the GC Series with:

1. Vibrating feeder
2. Cone crusher
3. Impact crusher
4. Vibrating screen
5. VSI sand making machine
6. Belt conveyor
7. Sand washing equipment
8. Complete electrical and process control system

A balanced system helps reduce circulating load, improve screening efficiency and keep final aggregate sizes more stable.

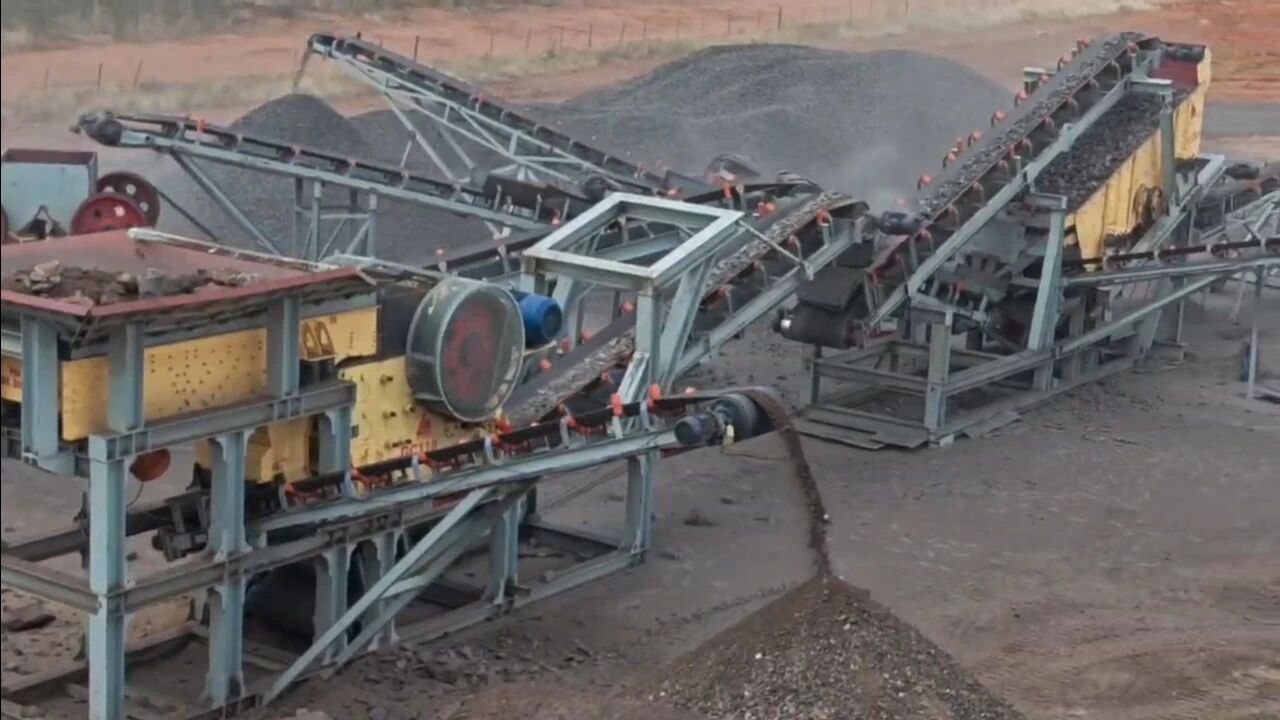

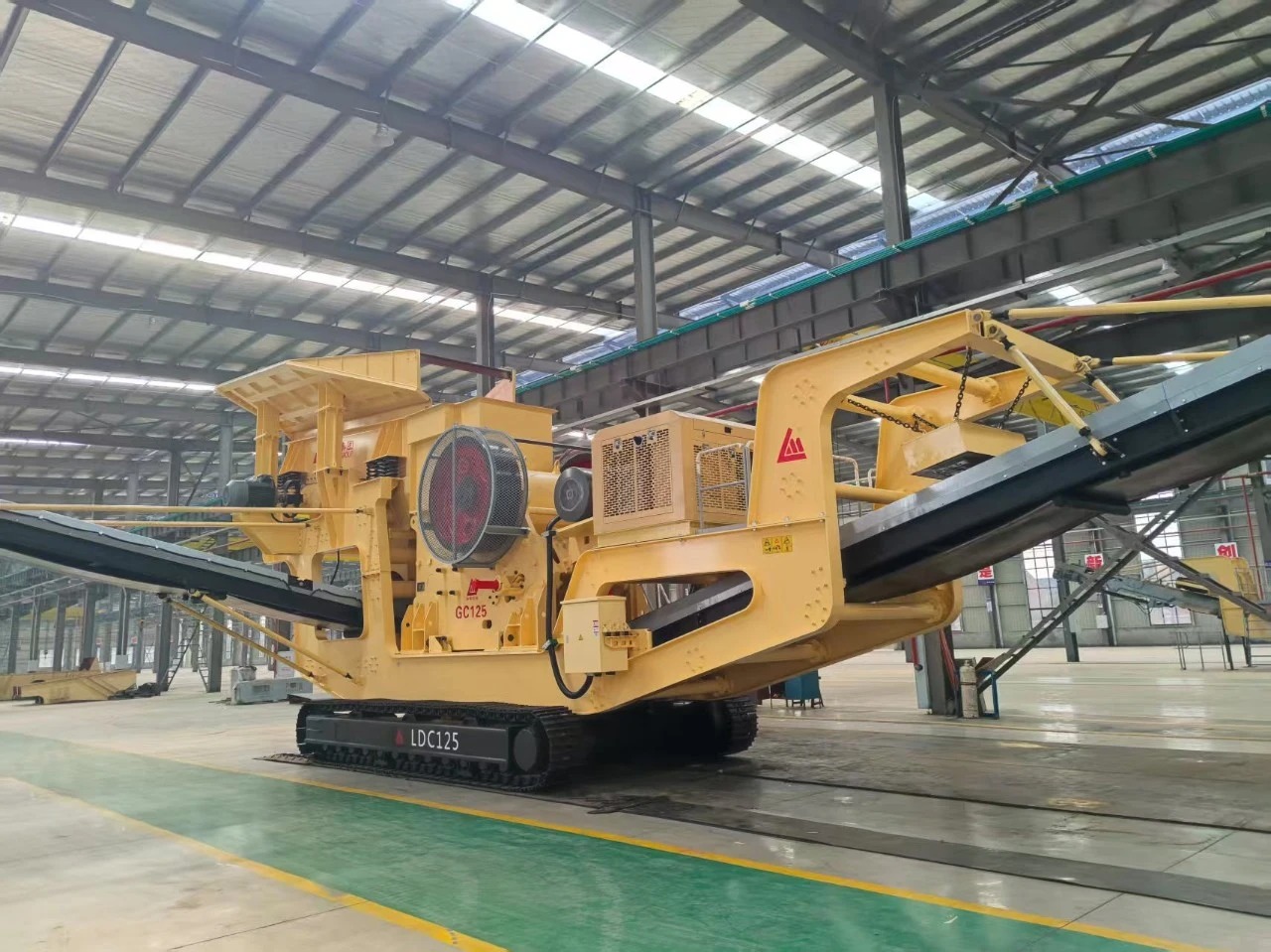

In addition to stationary crushing lines, the GC Series jaw crusher can also be used as the core crushing unit in Leimeng mobile and modular crushing stations. This allows clients to choose a more flexible configuration according to site layout, project duration and relocation needs.

For overseas quarry and mining projects, equipment supply is only one part of the work. Process design, plant layout, manufacturing, logistics, installation guidance, commissioning support and operator training are also important for long-term production.

Leimeng Group provides complete crushing and screening solutions based on the client’s raw material, feed size, target capacity, final product specification and site conditions.

Why Choose Leimeng GC Series Jaw Crusher?

The GC Series is suitable for clients who need a reliable primary jaw crusher for hard rock, aggregate and mining applications.

Key reasons to consider the GC Series include:

1. Up to 2,000 t/h single-machine capacity
2. Feed opening up to 2000×1500 mm
3. Deep crushing chamber for stable throughput
4. Strong frame design for long working hours
5. Multiple models for different plant capacities
6. Suitable for granite, basalt, river pebble and metal ores
7. Can be integrated into a complete crushing and screening line
8. Engineering support for equipment selection and process design

Instead of simply selecting a crusher by model name, Leimeng helps clients match the machine with the real working conditions.

FAQ

What is a primary jaw crusher used for?

A primary jaw crusher is used in the first crushing stage to reduce large rocks or ores into smaller sizes for secondary crushing, screening or further processing.

What materials can the GC Series jaw crusher process?

The GC Series is suitable for granite, basalt, river pebble, limestone, dolomite, iron ore, copper ore and other medium-hard to hard materials.

Is a jaw crusher suitable for granite and basalt?

Yes. For hard and abrasive materials such as granite and basalt, jaw crushers are commonly used as primary crushers because compression crushing is more suitable for heavy-duty coarse crushing.

What is the maximum capacity of the GC Series jaw crusher?

The largest GC Series model can reach up to 2,000 t/h single-machine processing capacity, depending on material type, feed size and operating conditions.

How do I choose the right GC jaw crusher model?

The model should be selected based on raw material, maximum feed size, required capacity, final product size, hardness, abrasiveness and downstream process configuration.

Can the GC jaw crusher be used in a complete aggregate plant?

Yes. It can be combined with feeders, cone crushers, impact crushers, vibrating screens, VSI sand makers and conveyors to form a complete crushing and screening plant.

Is a jaw crusher better than an impact crusher for primary crushing?

It depends on the material. Jaw crushers are usually better for hard and abrasive rock, while impact crushers may be suitable for softer and lower-abrasive materials such as limestone.

Can Leimeng provide a complete crushing plant instead of only a jaw crusher?

Yes. Leimeng can provide a complete crushing and screening configuration, including feeder, primary jaw crusher, cone crusher or impact crusher, vibrating screen, conveyor and sand-making or washing equipment when required.

What information should I provide for a jaw crusher quotation?

To recommend a suitable model, Leimeng usually needs the raw material, maximum feed size, required capacity, final product size, site location and whether the project needs a complete crushing and screening line.

Conclusion

A stable aggregate or mining production line starts with reliable primary crushing. The Leimeng GC Series jaw crusher is designed to handle large feed material, hard rock conditions and continuous production requirements.

For quarry owners, mining contractors and aggregate producers, the right primary jaw crusher can help improve plant stability, reduce downstream pressure and support long-term operating efficiency.

When selecting a crusher, the best starting point is not only the model number. It is the material, capacity, feed size, product requirement and complete process design. That is where Leimeng’s crushing and screening experience can support clients from equipment selection to project implementation.
